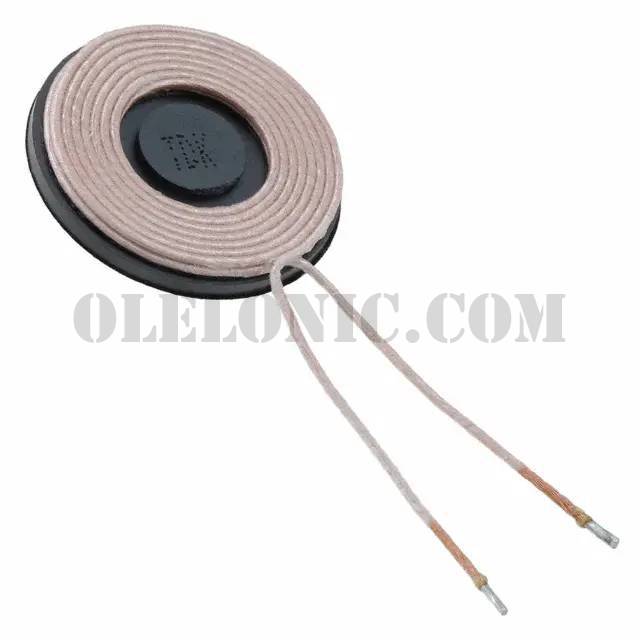

Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WT202012-15F2-ID
Standard Package	675
Manufacturer	TDK Corporation
Series	WT
Part Status	Active
Function	Transmitter
Type	1 Coil, 2 Layer
Inductance	6.2µH
Tolerance	±5%
DC Resistance (DCR)	80mOhm
Q @ Freq	-
Current Rating (Amps)	-
Current - Saturation	-
Frequency - Self Resonant	-
Operating Temperature	-
Size / Dimension	0.80" Dia x 0.10" H (20.3mm x 2.7mm)
