EV24-3.0-02-1M2
EV24-3.0-02-1M2

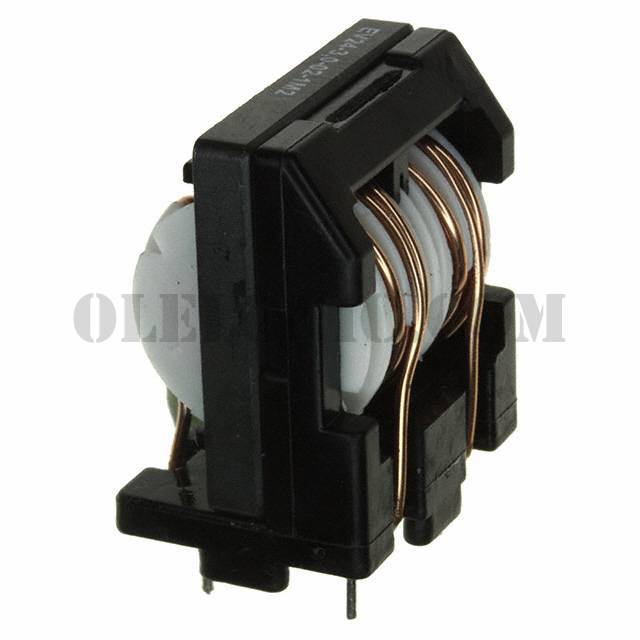

Part Number EV24-3.0-02-1M2 Description CMC 1.2MH 3A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 1.2mH @ 400Hz 2 Line Common Mode Choke Through Hole 3A DCR 29mOhm (Typ)
To learn about the specification of EV24-3.0-02-1M2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EV24-3.0-02-1M2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EV24-3.0-02-1M2.
We are offering EV24-3.0-02-1M2 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EV24-3.0-02-1M2 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 500 Manufacturer Schaffner EMC Inc. Series EV Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 1.2mH @ 400Hz Current Rating (Max) 3A DC Resistance (DCR) (Max) 29mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 0.969" L x 0.685" W (24.60mm x 17.40mm) Height (Max) 1.185" (30.10mm) Package / Case Vertical, 4 PC Pin
