EV35-2.0-02-20M
EV35-2.0-02-20M

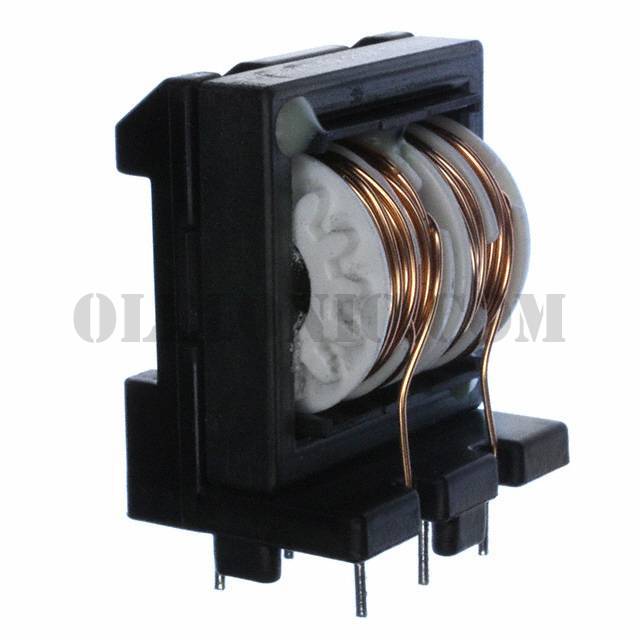

Part Number EV35-2.0-02-20M Description COMMON MODE CHOKE 20MH 2A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 20mH @ 400Hz 2 Line Common Mode Choke Through Hole 2A DCR 150mOhm (Typ)
To learn about the specification of EV35-2.0-02-20M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EV35-2.0-02-20M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EV35-2.0-02-20M.
We are offering EV35-2.0-02-20M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EV35-2.0-02-20M - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 250 Manufacturer Schaffner EMC Inc. Series EV Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 20mH @ 400Hz Current Rating (Max) 2A DC Resistance (DCR) (Max) 150mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.417" L x 0.965" W (36.00mm x 24.50mm) Height (Max) 1.681" (42.70mm) Package / Case Vertical, 4 PC Pin
