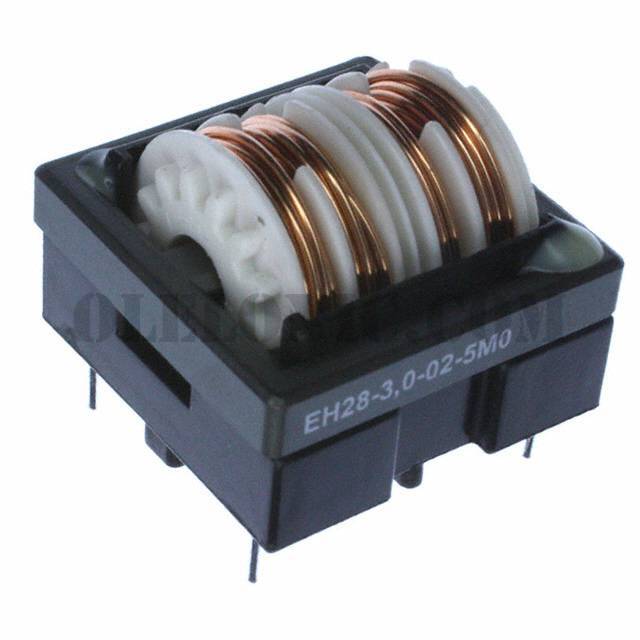

EH28-3.0-02-5M0
EH28-3.0-02-5M0
Part Number EH28-3.0-02-5M0 Description COMMON MODE CHOKE 5MH 3A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 5mH @ 400Hz 2 Line Common Mode Choke Through Hole 3A DCR 79mOhm (Typ)
To learn about the specification of EH28-3.0-02-5M0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EH28-3.0-02-5M0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EH28-3.0-02-5M0.
We are offering EH28-3.0-02-5M0 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EH28-3.0-02-5M0 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 500 Manufacturer Schaffner EMC Inc. Series EH Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 5mH @ 400Hz Current Rating (Max) 3A DC Resistance (DCR) (Max) 79mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.102" L x 1.102" W (28.00mm x 28.00mm) Height (Max) 0.941" (23.90mm) Package / Case Horizontal, 4 PC Pin
