RN152-8-02-2M7
RN152-8-02-2M7

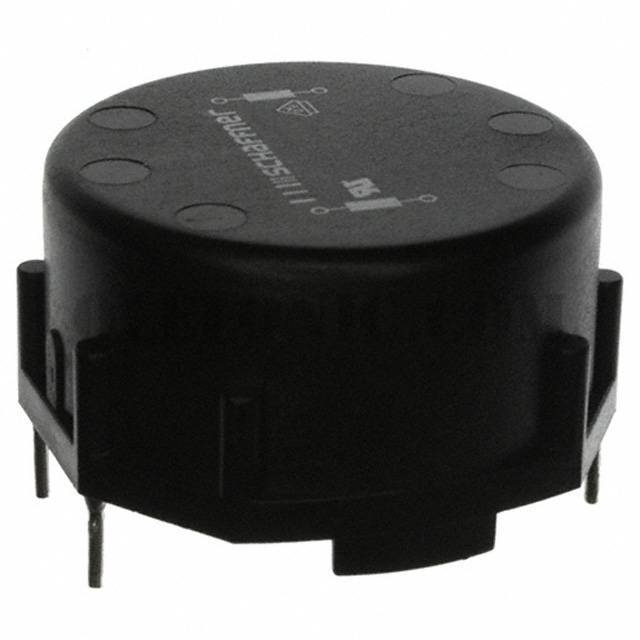

Part Number RN152-8-02-2M7 Description CMC 2.7MH 8A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2.7mH @ 10kHz 2 Line Common Mode Choke Through Hole 8A DCR 22mOhm (Typ)
To learn about the specification of RN152-8-02-2M7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RN152-8-02-2M7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RN152-8-02-2M7.
We are offering RN152-8-02-2M7 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RN152-8-02-2M7 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RN Series Datasheet Standard Package 100 Manufacturer Schaffner EMC Inc. Series RN Packaging Tray Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 2.7mH @ 10kHz Current Rating (Max) 8A DC Resistance (DCR) (Max) 22mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 300V Operating Temperature -40°C ~ 100°C Ratings - Approvals ENEC, UR, VDE Features - Mounting Type Through Hole Size / Dimension 1.693" L x 1.646" W (43.00mm x 41.80mm) Height (Max) 0.996" (25.30mm) Package / Case Horizontal, 4 PC Pin
