RN102-1-02-3M0
RN102-1-02-3M0

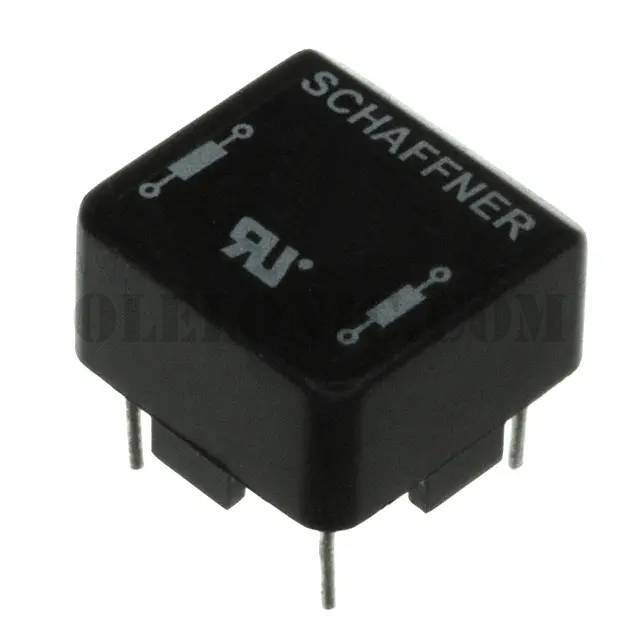

Part Number RN102-1-02-3M0 Description CMC 3MH 1A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 3mH @ 10kHz 2 Line Common Mode Choke Through Hole 1A DCR 210mOhm (Typ)
To learn about the specification of RN102-1-02-3M0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RN102-1-02-3M0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RN102-1-02-3M0.
We are offering RN102-1-02-3M0 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RN102-1-02-3M0 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RN Series Datasheet Standard Package 600 Manufacturer Schaffner EMC Inc. Series RN Packaging Tray Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 3mH @ 10kHz Current Rating (Max) 1A DC Resistance (DCR) (Max) 210mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 300V Operating Temperature -40°C ~ 100°C Ratings - Approvals ENEC, UR, VDE Features - Mounting Type Through Hole Size / Dimension 0.551" Dia x 0.551" W (14.00mm x 14.00mm) Height (Max) 0.366" (9.30mm) Package / Case Horizontal, 4 PC Pin
