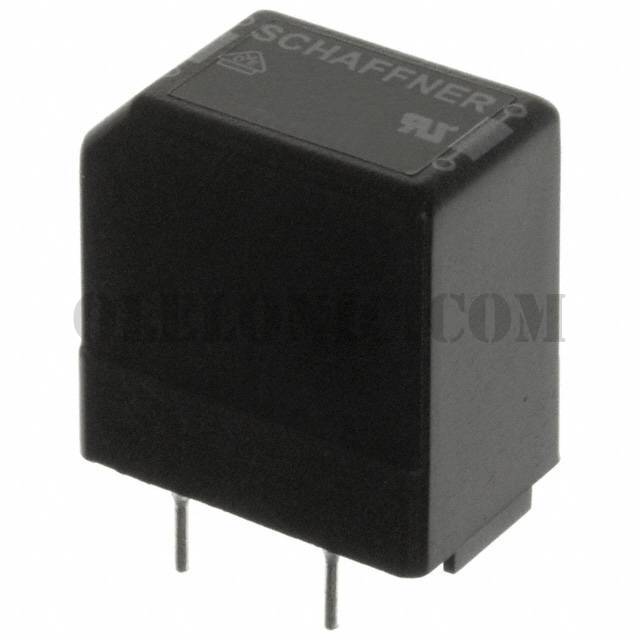

RN216-0.5-02-47M

RN216-0.5-02-47M

Part NumberRN216-0.5-02-47M

ManufacturerSchaffner EMC Inc.

DescriptionCMC 47MH 500MA 2LN TH

DatasheetRN Series Datasheet

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description47mH @ 10kHz 2 Line Common Mode Choke Through Hole 500mA DCR 960mOhm (Typ)

To learn about the specification of RN216-0.5-02-47M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RN216-0.5-02-47M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RN216-0.5-02-47M.
We are offering RN216-0.5-02-47M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RN216-0.5-02-47M - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	RN Series Datasheet
Standard Package	500
Manufacturer	Schaffner EMC Inc.
Series	RN
Packaging	Tube
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	47mH @ 10kHz
Current Rating (Max)	500mA
DC Resistance (DCR) (Max)	960mOhm (Typ)
Voltage Rating - DC	-
Voltage Rating - AC	300V
Operating Temperature	-40°C ~ 100°C
Ratings	-
Approvals	ENEC, UR, VDE
Features	-
Mounting Type	Through Hole
Size / Dimension	0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max)	0.996" (25.30mm)
Package / Case	Vertical, 4 PC Pin
