EH35-1.0-02-90M
EH35-1.0-02-90M

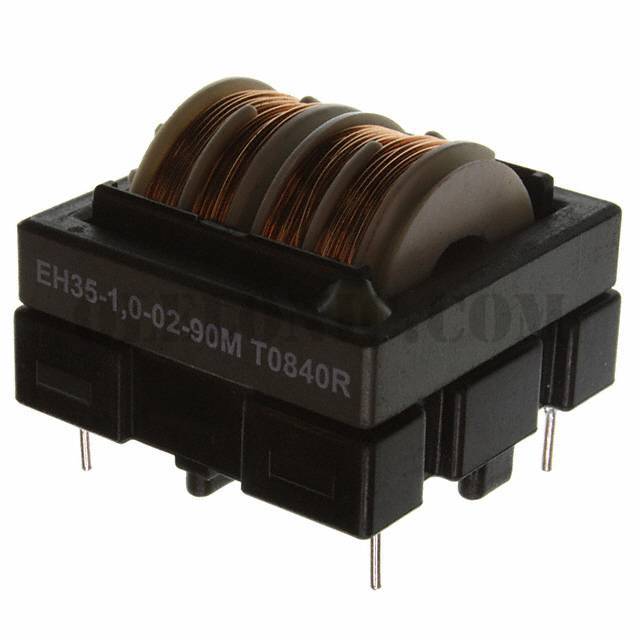

Part Number EH35-1.0-02-90M Description COMMON MODE CHOKE 90MH 1A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 90mH @ 400Hz 2 Line Common Mode Choke Through Hole 1A DCR 628mOhm (Typ)
To learn about the specification of EH35-1.0-02-90M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EH35-1.0-02-90M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EH35-1.0-02-90M.
We are offering EH35-1.0-02-90M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EH35-1.0-02-90M - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 250 Manufacturer Schaffner EMC Inc. Series EH Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 90mH @ 400Hz Current Rating (Max) 1A DC Resistance (DCR) (Max) 628mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.417" L x 1.417" W (36.00mm x 36.00mm) Height (Max) 1.130" (28.70mm) Package / Case Horizontal, 4 PC Pin
