EV24-1.0-02-10M
EV24-1.0-02-10M

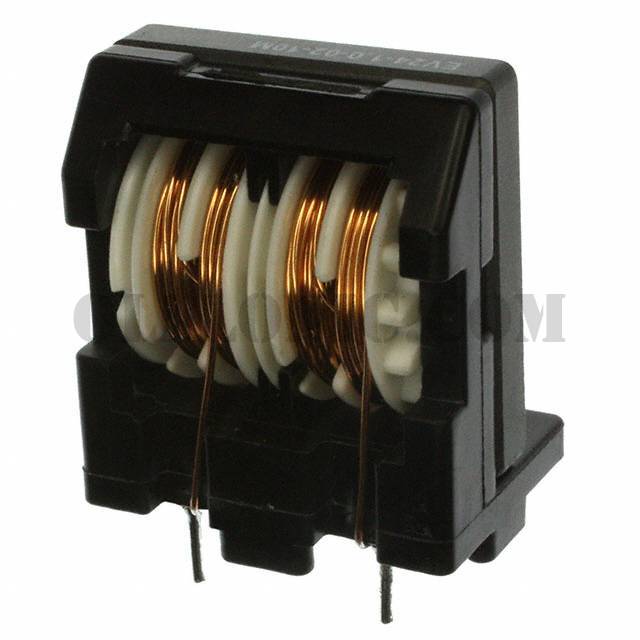

Part Number EV24-1.0-02-10M Description COMMON MODE CHOKE 10MH 1A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 10mH @ 400Hz 2 Line Common Mode Choke Through Hole 1A DCR 244mOhm (Typ)
To learn about the specification of EV24-1.0-02-10M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EV24-1.0-02-10M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EV24-1.0-02-10M.
We are offering EV24-1.0-02-10M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EV24-1.0-02-10M - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 500 Manufacturer Schaffner EMC Inc. Series EV Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 10mH @ 400Hz Current Rating (Max) 1A DC Resistance (DCR) (Max) 244mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 0.969" L x 0.685" W (24.60mm x 17.40mm) Height (Max) 1.185" (30.10mm) Package / Case Vertical, 4 PC Pin
EV24-1.0-02-10M - Related ProductsMore >>
EV28-1.5-02-20M Schaffner EMC Inc., 20mH @ 400Hz 2 Line Common Mode Choke Through Hole 1.5A DCR 282mOhm (Typ), EV
View
EH35-4.0-02-5M0 Schaffner EMC Inc., 5mH @ 400Hz 2 Line Common Mode Choke Through Hole 4A DCR 53mOhm (Typ), EH
View
EH28-2.0-02-11M Schaffner EMC Inc., 11mH @ 10kHz 2 Line Common Mode Choke Through Hole 2A DCR 162mOhm (Typ), EH
View
EH24-0.5-02-44M Schaffner EMC Inc., 44mH @ 400Hz 2 Line Common Mode Choke Through Hole 500mA DCR 1.25Ohm (Typ), EH
View
EV24-1.0-02-10M Schaffner EMC Inc., 10mH @ 400Hz 2 Line Common Mode Choke Through Hole 1A DCR 244mOhm (Typ), EV
View
EV28-2.0-02-11M Schaffner EMC Inc., 11mH @ 400Hz 2 Line Common Mode Choke Through Hole 2A DCR 162mOhm (Typ), EV
View
EH28-5.0-02-1M1 Schaffner EMC Inc., 1.1mH @ 400Hz 2 Line Common Mode Choke Through Hole 5A DCR 27mOhm (Typ), EH
View
EH24-3.0-02-1M2 Schaffner EMC Inc., 1.2mH @ 400Hz 2 Line Common Mode Choke Through Hole 3A DCR 29mOhm (Typ), EH
View
EH24-1.0-02-10M Schaffner EMC Inc., 10mH @ 10kHz 2 Line Common Mode Choke Through Hole 1A DCR 244mOhm (Typ), EH
View
EH28-1.5-02-27M-X Schaffner EMC Inc., 27mH @ 400Hz 2 Line Common Mode Choke Through Hole 1.5A DCR 282mOhm, EH
View
EV28-3.0-02-5M0 Schaffner EMC Inc., 5mH @ 400Hz 2 Line Common Mode Choke Through Hole 3A DCR 79mOhm (Typ), EV
View
EV24-4.0-02-0M5 Schaffner EMC Inc., 500µH @ 400Hz 2 Line Common Mode Choke Through Hole 4A DCR 16mOhm (Typ), EV
View
