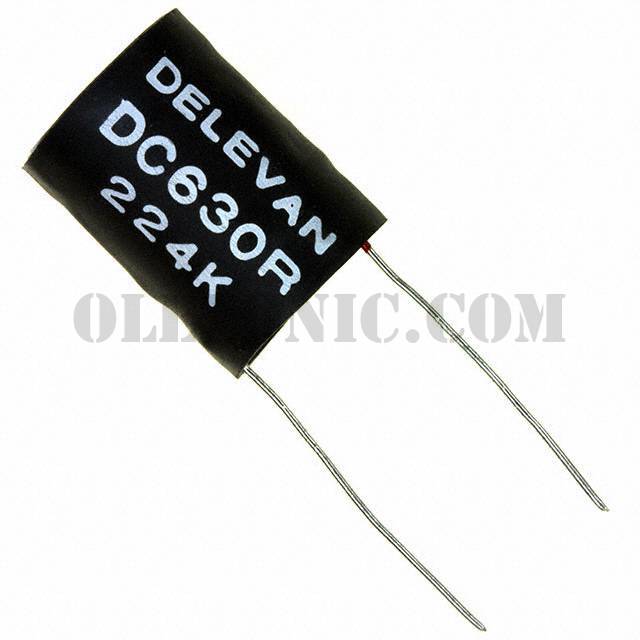

DC630R-224K

DC630R-224K

Part NumberDC630R-224K

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 220UH 2.42A 168 MOHM

DatasheetDC630(R) Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description220µH Unshielded Wirewound Inductor 2.42A 168mOhm Max Radial, Vertical Cylinder

To learn about the specification of DC630R-224K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DC630R-224K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DC630R-224K.
We are offering DC630R-224K for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DC630R-224K - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	DC630(R) Series
Standard Package	100
Manufacturer	API Delevan Inc.
Series	DC630R
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	220µH
Tolerance	±10%
Current Rating (Amps)	2.42A
Current - Saturation	4.6A
Shielding	Unshielded
DC Resistance (DCR)	168mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	10kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.830" (21.08mm)
