C3M0075120J
C3M0075120J

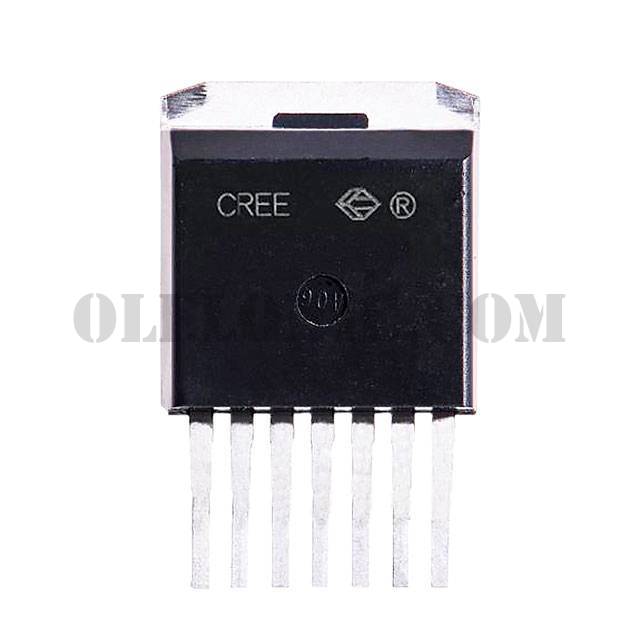

Part Number C3M0075120J Description MOSFET N-CH 1200V 30A D2PAK-7 Package / Case TO-263-8, D²Pak (7 Leads + Tab), TO-263CAUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description N-Channel 1200V 30A (Tc) 113.6W (Tc) Surface Mount D2PAK-7
To learn about the specification of C3M0075120J, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add C3M0075120J with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of C3M0075120J.
We are offering C3M0075120J for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
C3M0075120J - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet C3M0075120J Standard Package 50 Manufacturer Cree/Wolfspeed Series C3M™ Packaging Bulk Part Status Active FET Type N-Channel Technology SiCFET (Silicon Carbide) Drain to Source Voltage (Vdss) 1200V Current - Continuous Drain (Id) @ 25°C 30A (Tc) Drive Voltage (Max Rds On, Min Rds On) 15V Rds On (Max) @ Id, Vgs 90mOhm @ 20A, 15V Vgs(th) (Max) @ Id 4V @ 5mA Gate Charge (Qg) (Max) @ Vgs 51nC @ 15V Vgs (Max) +19V, -8V Input Capacitance (Ciss) (Max) @ Vds 1350pF @ 1000V FET Feature - Power Dissipation (Max) 113.6W (Tc) Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Surface Mount Supplier Device Package D2PAK-7 Package / Case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
