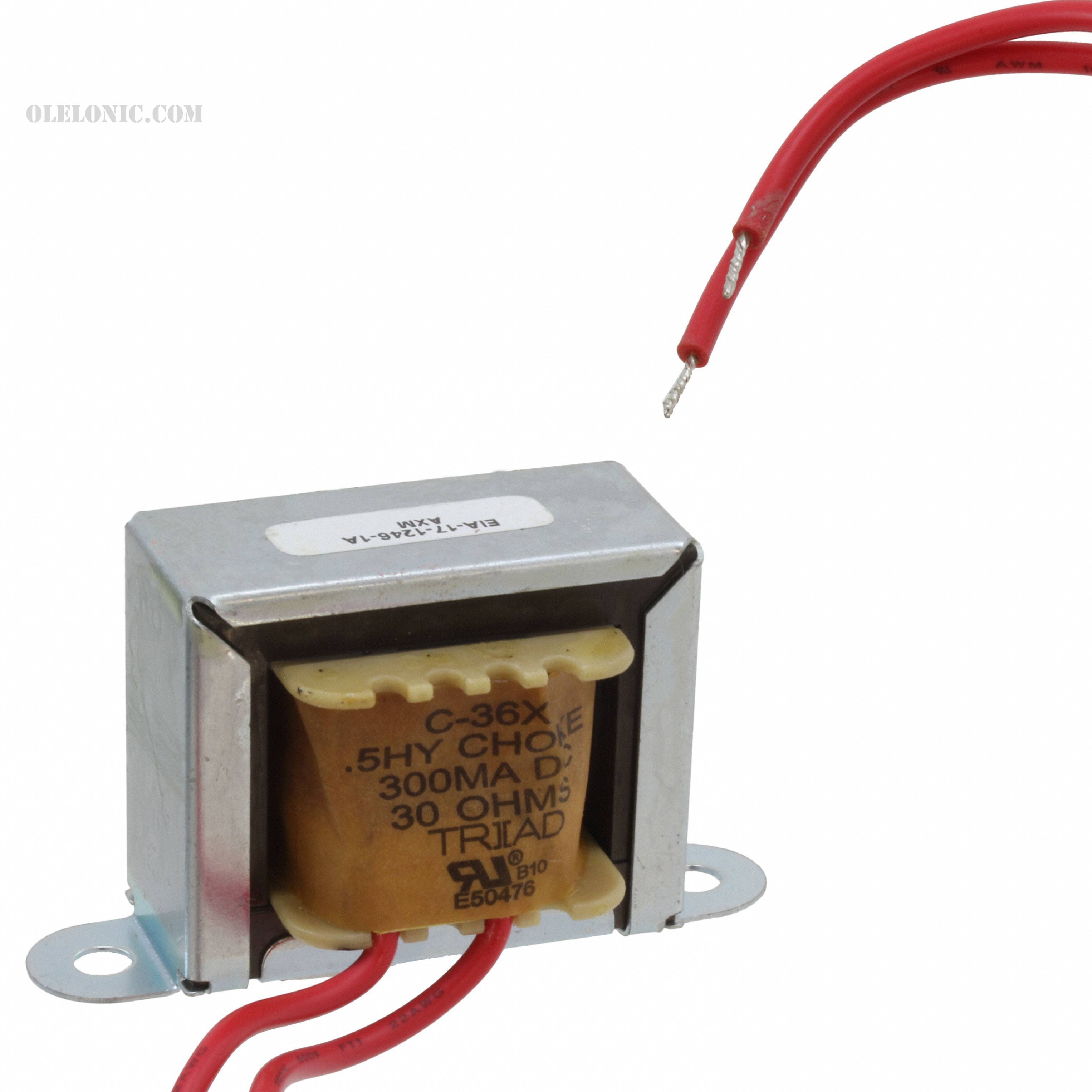

C-36X


C-36X

Part NumberC-36X

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

C-36X - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerTriad Magnetics
SeriesC
PackagingBulk
Part StatusActive
TypeWirewound
Material - Core-
Inductance500mH
Tolerance-20%, +50%
Current Rating (Amps)300mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)30Ohm
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 85°C
Inductance Frequency - Test120Hz
Mounting TypeChassis Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension2.375" L x 1.500" W (60.32mm x 38.10mm)
Height - Seated (Max)1.375" (34.93mm)
