C-59U
C-59U

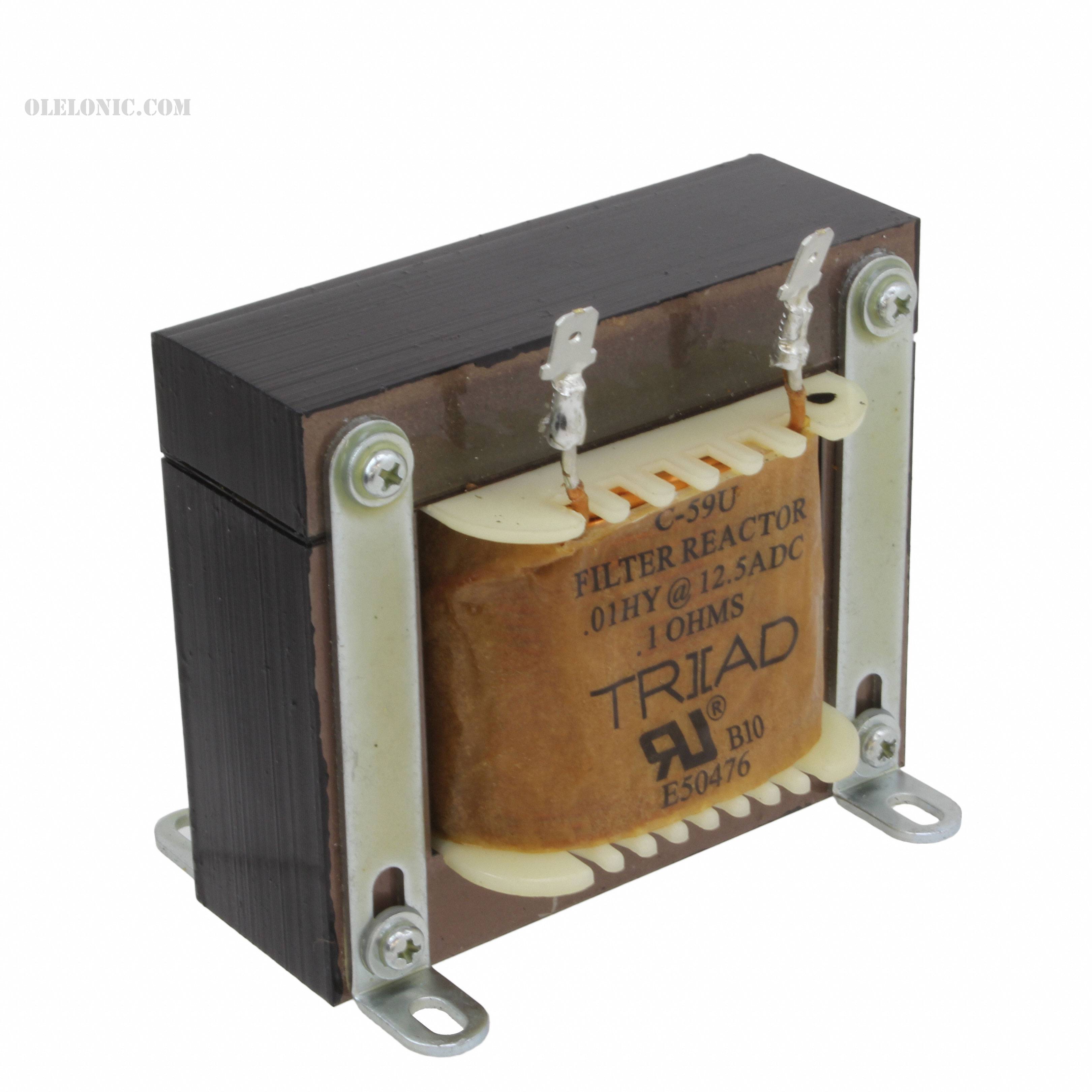

Part Number C-59U Description FIXED IND 10MH 12.5A 100 MOHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 10mH Unshielded Wirewound Inductor 12.5A 100mOhm Nonstandard
To learn about the specification of C-59U, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add C-59U with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of C-59U.
We are offering C-59U for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
C-59U - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet C-59U Standard Package 1 Manufacturer Triad Magnetics Series C Packaging Bulk Part Status Active Type Wirewound Material - Core - Inductance 10mH Tolerance -20%, +50% Current Rating (Amps) 12.5A Current - Saturation - Shielding Unshielded DC Resistance (DCR) 100mOhm Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 85°C Inductance Frequency - Test 120Hz Mounting Type Chassis Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 4.125" L x 3.000" W (104.77mm x 76.20mm) Height - Seated (Max) 3.500" (88.90mm)
