C-60U
C-60U

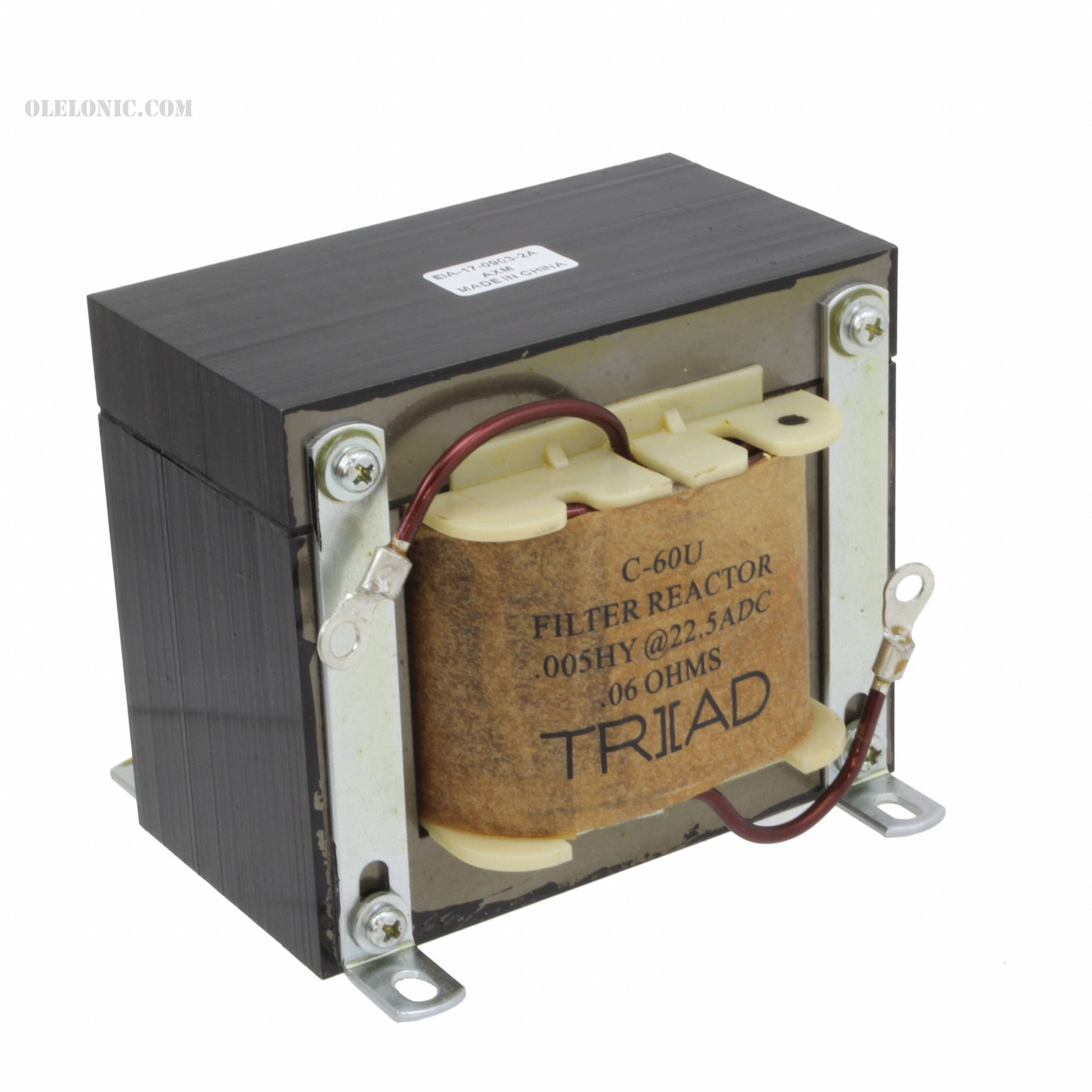

Part Number C-60U Description FIXED IND 5MH 22.5A 60 MOHM CHAS Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 5mH Unshielded Wirewound Inductor 22.5A 60mOhm Nonstandard
To learn about the specification of C-60U, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add C-60U with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of C-60U.
We are offering C-60U for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
C-60U - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet C-60U Standard Package 1 Manufacturer Triad Magnetics Series C Packaging Bulk Part Status Active Type Wirewound Material - Core - Inductance 5mH Tolerance -20%, +50% Current Rating (Amps) 22.5A Current - Saturation - Shielding Unshielded DC Resistance (DCR) 60mOhm Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 85°C Inductance Frequency - Test 120Hz Mounting Type Chassis Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 4.500" L x 4.187" W (114.30mm x 106.35mm) Height - Seated (Max) 3.750" (95.25mm)
