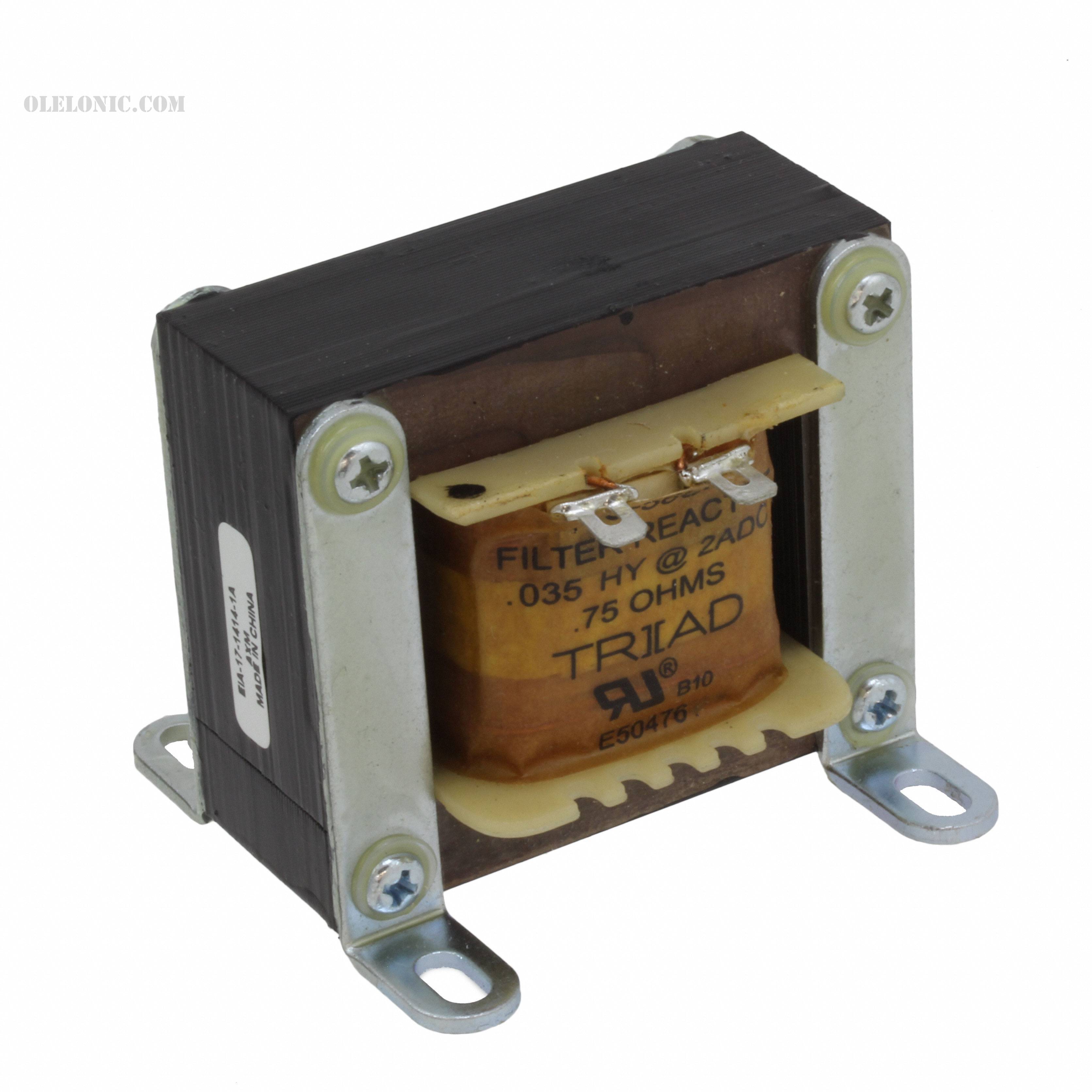

Part Number C-56U Description FIXED IND 35MH 2A 790 MOHM CHASS Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 35mH Unshielded Wirewound Inductor 2A 790mOhm Nonstandard
To learn about the specification of C-56U, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add C-56U with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of C-56U.
We are offering C-56U for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
C-56U - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet C-56U Standard Package 1 Manufacturer Triad Magnetics Series C Packaging Bulk Part Status Active Type Wirewound Material - Core - Inductance 35mH Tolerance -20%, +50% Current Rating (Amps) 2A Current - Saturation - Shielding Unshielded DC Resistance (DCR) 790mOhm Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 85°C Inductance Frequency - Test 120Hz Mounting Type Chassis Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 2.625" L x 2.000" W (66.68mm x 50.80mm) Height - Seated (Max) 2.250" (57.15mm)
