C-17X
C-17X

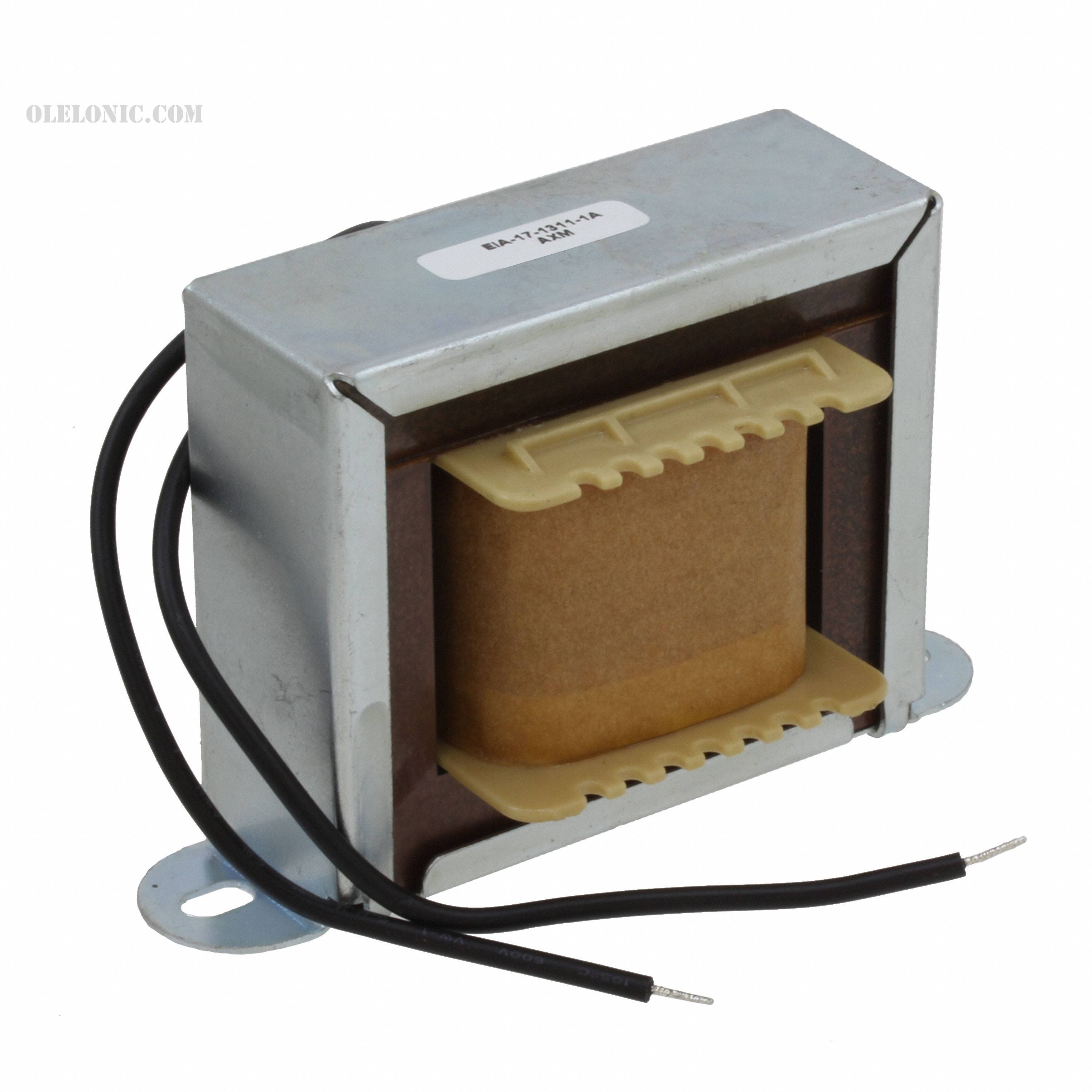

Part Number C-17X Description FIXED IND 1.5H 300MA 40 OHM CHAS Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 1.5H Unshielded Wirewound Inductor 300mA 40Ohm Nonstandard
To learn about the specification of C-17X, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add C-17X with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of C-17X.
We are offering C-17X for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
C-17X - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet C-17X Standard Package 1 Manufacturer Triad Magnetics Series C Packaging Bulk Part Status Active Type Wirewound Material - Core - Inductance 1.5H Tolerance -20%, +50% Current Rating (Amps) 300mA Current - Saturation - Shielding Unshielded DC Resistance (DCR) 40Ohm Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 85°C Inductance Frequency - Test 120Hz Mounting Type Chassis Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 3.687" L x 2.000" W (93.65mm x 50.80mm) Height - Seated (Max) 2.281" (57.94mm)
