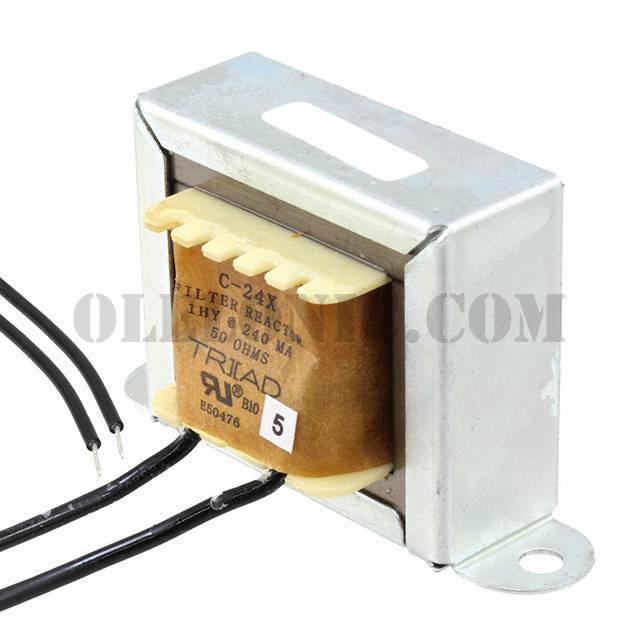

Part Number C-24X Description FIXED IND 1H 240MA 50 OHM CHASS Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 1H Unshielded Wirewound Inductor 240mA 50Ohm Nonstandard
To learn about the specification of C-24X, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add C-24X with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of C-24X.
We are offering C-24X for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
C-24X - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet C-24X Standard Package 1 Manufacturer Triad Magnetics Series C Packaging Bulk Part Status Active Type Wirewound Material - Core - Inductance 1H Tolerance -20%, +50% Current Rating (Amps) 240mA Current - Saturation - Shielding Unshielded DC Resistance (DCR) 50Ohm Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 85°C Inductance Frequency - Test 120Hz Mounting Type Chassis Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 2.812" L x 1.500" W (71.42mm x 38.10mm) Height - Seated (Max) 1.625" (41.28mm)
