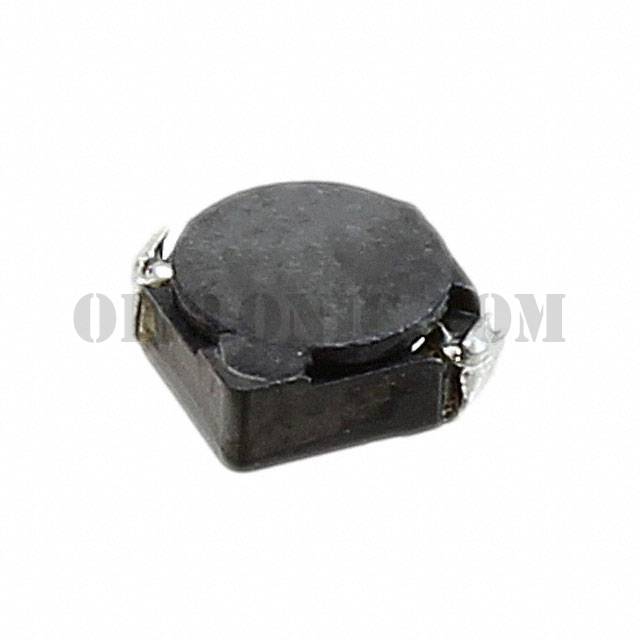

CDRH3D16/HPNP-2R2NC

Part NumberCDRH3D16/HPNP-2R2NC

To learn about the specification of CDRH3D16/HPNP-2R2NC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CDRH3D16/HPNP-2R2NC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CDRH3D16/HPNP-2R2NC.
We are offering CDRH3D16/HPNP-2R2NC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	CDRH3D16/HP Series
Standard Package	1000
Manufacturer	Sumida America Components Inc.
Series	CDRH3D16/HP
Packaging	Tape & Reel (TR)
Part Status	Active
Type	-
Material - Core	Ferrite
Inductance	2.2µH
Tolerance	±30%
Current Rating (Amps)	2.3A
Current - Saturation	1.75A
Shielding	Shielded
DC Resistance (DCR)	59mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 105°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max)	0.071" (1.80mm)
