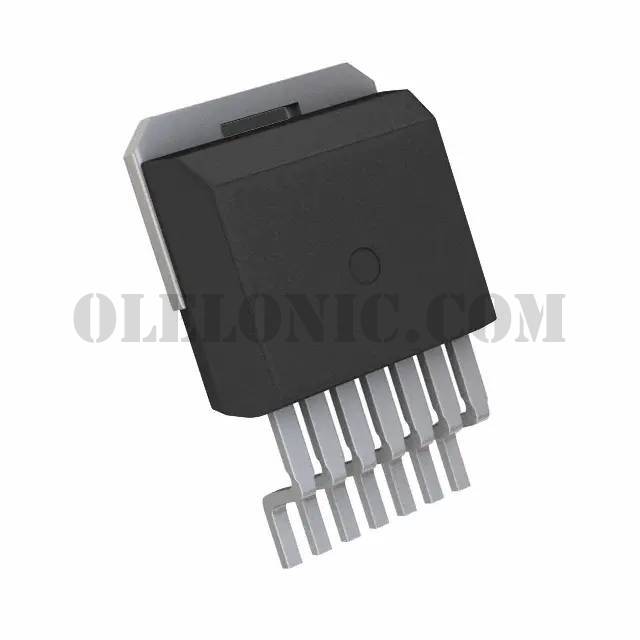

C3M0280090J-TR


C3M0280090J-TR

Part NumberC3M0280090J-TR

Manufacturer

Description

Datasheet

Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

C3M0280090J-TR - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package1
ManufacturerCree/Wolfspeed
SeriesC3M™
PackagingCut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)900V
Current - Continuous Drain (Id) @ 25°C11A (Tc)
Drive Voltage (Max Rds On, Min Rds On)15V
Rds On (Max) @ Id, Vgs360mOhm @ 7.5A, 15V
Vgs(th) (Max) @ Id3.5V @ 1.2mA
Gate Charge (Qg) (Max) @ Vgs9.5nC @ 15V
Vgs (Max)+18V, -8V
Input Capacitance (Ciss) (Max) @ Vds150pF @ 600V
FET Feature-
Power Dissipation (Max)50W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK-7
Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
