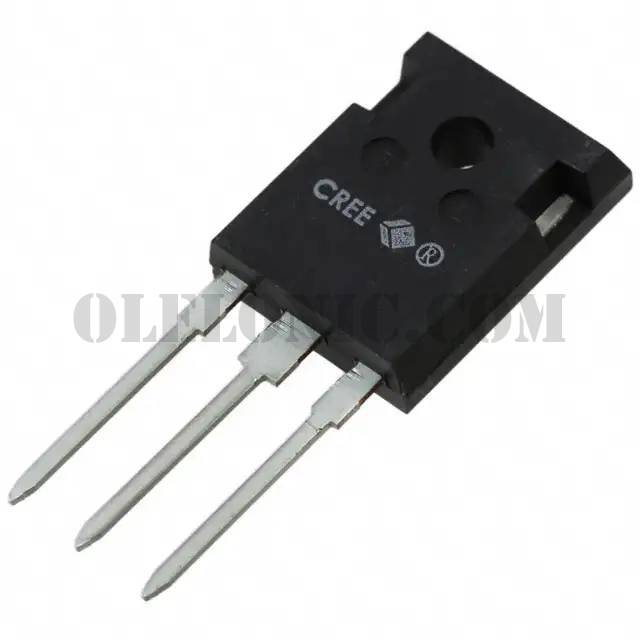

C2M1000170D


C2M1000170D

Part NumberC2M1000170D

Manufacturer

Description

Datasheet

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

C2M1000170D - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package30
ManufacturerCree/Wolfspeed
SeriesZ-FET™
PackagingTube
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)1700V
Current - Continuous Drain (Id) @ 25°C4.9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)20V
Rds On (Max) @ Id, Vgs1.1Ohm @ 2A, 20V
Vgs(th) (Max) @ Id2.4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs13nC @ 20V
Vgs (Max)+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds191pF @ 1000V
FET Feature-
Power Dissipation (Max)69W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-3
Package / CaseTO-247-3
