Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet BUK9217-75B
Standard Package 1
Manufacturer Nexperia USA Inc.
Series Automotive, AEC-Q101, TrenchMOS™
Packaging Cut Tape (CT)
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 75V
Current - Continuous Drain (Id) @ 25°C 64A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 5V, 10V
Rds On (Max) @ Id, Vgs 15mOhm @ 25A, 10V
Vgs(th) (Max) @ Id 2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 35nC @ 5V
Vgs (Max) ±15V
Input Capacitance (Ciss) (Max) @ Vds 4029pF @ 25V
FET Feature -
Power Dissipation (Max) 167W (Tc)
Operating Temperature -55°C ~ 185°C (TJ)
Mounting Type Surface Mount

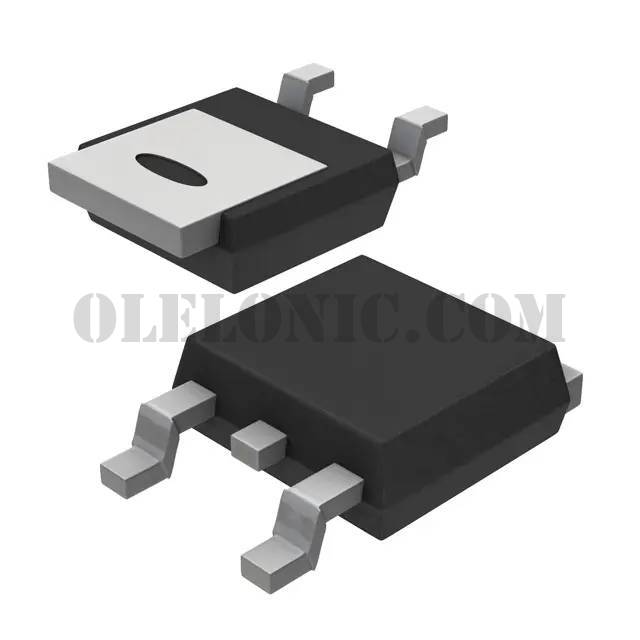

Supplier Device Package DPAK
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
