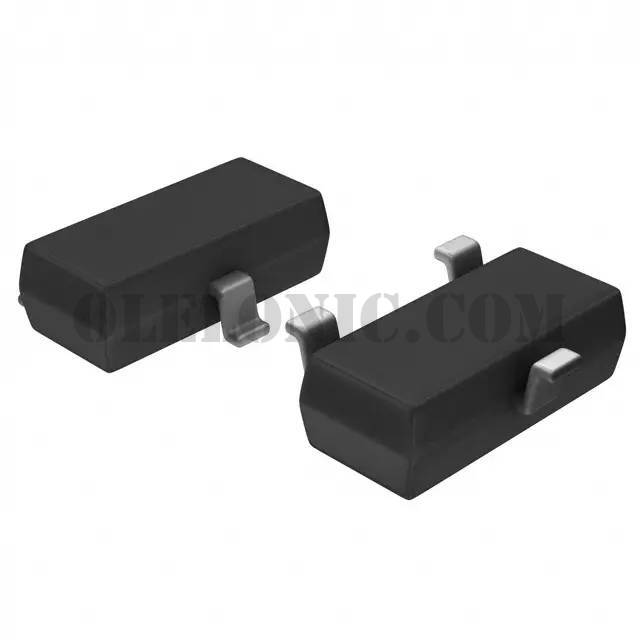

2N7002-HF


2N7002-HF

Part Number2N7002-HF

Manufacturer

Description

Datasheet

Package / CaseTO-236-3, SC-59, SOT-23-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

2N7002-HF - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package3000
ManufacturerComchip Technology
Series-
PackagingTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C250mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3Ohm @ 250mA, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1nC @ 10V
Vgs (Max)-
Input Capacitance (Ciss) (Max) @ Vds25pF @ 25V
FET Feature-
Power Dissipation (Max)350mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23
Package / CaseTO-236-3, SC-59, SOT-23-3
