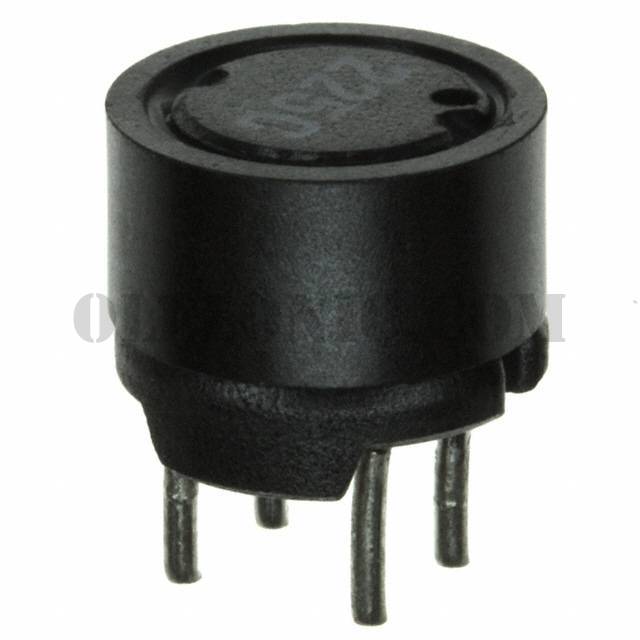

12LRS225C

Part Number12LRS225C

ManufacturerMurata Power Solutions Inc.

DescriptionFIXED IND 2.2MH 280MA 4.6 OHM TH

Datasheet1200LRS Series

Package / CaseRadial, Vertical Cylinder, 4 Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2mH Shielded Wirewound Inductor 280mA 4.6Ohm Max Radial, Vertical Cylinder, 4 Leads

To learn about the specification of 12LRS225C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 12LRS225C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 12LRS225C.
We are offering 12LRS225C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

12LRS225C - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	1200LRS Series
Standard Package	250
Manufacturer	Murata Power Solutions Inc.
Series	1200LRS
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	2.2mH
Tolerance	±15%
Current Rating (Amps)	280mA
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	4.6Ohm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	10kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder, 4 Leads
Supplier Device Package	-
Size / Dimension	0.413" Dia (10.50mm)
Height - Seated (Max)	0.335" (8.50mm)
