TPH3205WSBQA
TPH3205WSBQA

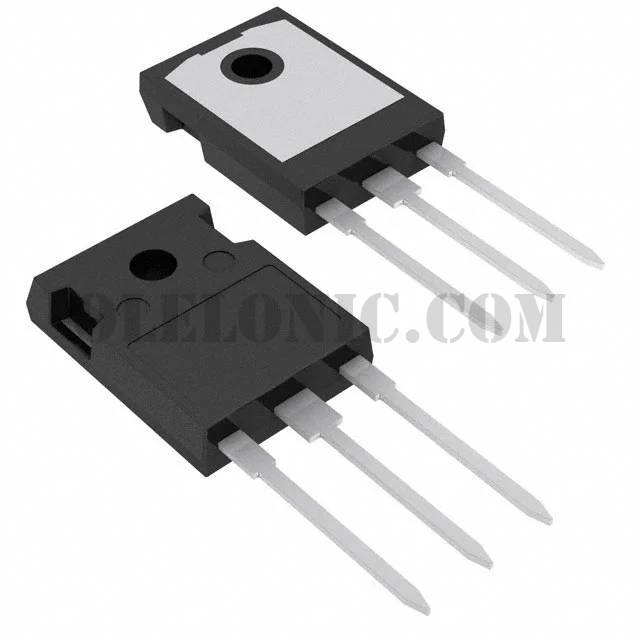

Part Number TPH3205WSBQA Description GANFET N-CH 650V 35A TO247 Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description N-Channel 650V 35A (Tc) 125W (Tc) Through Hole TO-247-3
To learn about the specification of TPH3205WSBQA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPH3205WSBQA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPH3205WSBQA.
We are offering TPH3205WSBQA for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
TPH3205WSBQA - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet TPH3205WSBQA Standard Package 30 Manufacturer Transphorm Series Automotive, AEC-Q101 Packaging Tube Part Status Active FET Type N-Channel Technology GaNFET (Gallium Nitride) Drain to Source Voltage (Vdss) 650V Current - Continuous Drain (Id) @ 25°C 35A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V Rds On (Max) @ Id, Vgs 62mOhm @ 22A, 8V Vgs(th) (Max) @ Id 2.6V @ 700µA Gate Charge (Qg) (Max) @ Vgs 42nC @ 8V Vgs (Max) ±18V Input Capacitance (Ciss) (Max) @ Vds 2200pF @ 400V FET Feature - Power Dissipation (Max) 125W (Tc) Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Supplier Device Package TO-247-3 Package / Case TO-247-3
