TPH3208LSG
TPH3208LSG

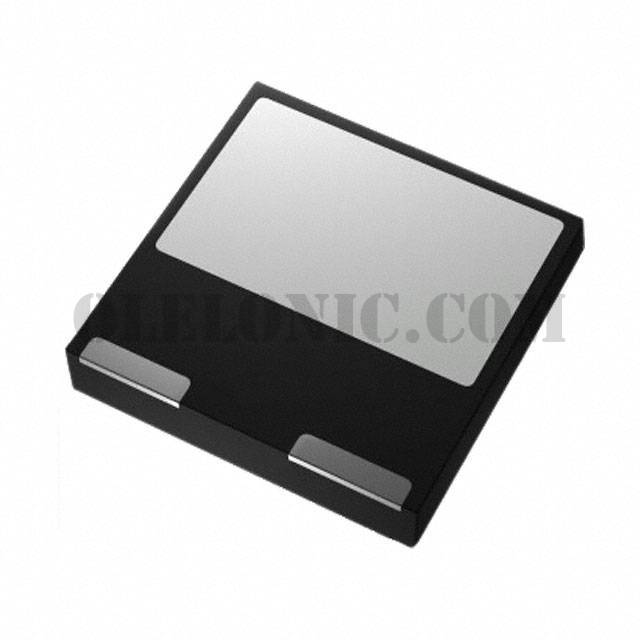

Part Number TPH3208LSG Description GANFET N-CH 650V 20A 3PQFN Package / Case 3-PowerDFNUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description N-Channel 650V 20A (Tc) 96W (Tc) Surface Mount 3-PQFN (8x8)
To learn about the specification of TPH3208LSG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPH3208LSG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPH3208LSG.
We are offering TPH3208LSG for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
TPH3208LSG - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet TPH3208L Series Standard Package 60 Manufacturer Transphorm Series - Packaging Tube Part Status Not For New Designs FET Type N-Channel Technology GaNFET (Gallium Nitride) Drain to Source Voltage (Vdss) 650V Current - Continuous Drain (Id) @ 25°C 20A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V Rds On (Max) @ Id, Vgs 130mOhm @ 14A, 8V Vgs(th) (Max) @ Id 2.6V @ 300µA Gate Charge (Qg) (Max) @ Vgs 42nC @ 8V Vgs (Max) ±18V Input Capacitance (Ciss) (Max) @ Vds 760pF @ 400V FET Feature - Power Dissipation (Max) 96W (Tc) Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Surface Mount Supplier Device Package 3-PQFN (8x8) Package / Case 3-PowerDFN
