Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	EPC8009 Datasheet
Standard Package	1
Manufacturer	EPC
Series	eGaN®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	65V
Current - Continuous Drain (Id) @ 25°C	2.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	130mOhm @ 500mA, 5V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.45nC @ 5V
Vgs (Max)	+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds	52pF @ 32.5V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Die
Package / Case	Die

EPC2021	EPC, N-Channel 80V 90A (Ta) Surface Mount Die, eGaN®	View
TPH3208LSG	Transphorm, N-Channel 650V 20A (Tc) 96W (Tc) Surface Mount 3-PQFN (8x8),	View
EPC8009	EPC, N-Channel 65V 2.7A (Ta) Surface Mount Die, eGaN®	View
EPC2014C	EPC, N-Channel 40V 10A (Ta) Surface Mount Die Outline (5-Solder Bar), eGaN®	View
EPC2016C	EPC, N-Channel 100V 18A (Ta) Surface Mount Die, eGaN®	View
EPC2212	EPC, N-Channel 100V 18A (Ta) Surface Mount Die, eGaN®	View
EPC2051	EPC, N-Channel 100V 1.7A Surface Mount Die, eGaN®	View
EPC2035	EPC, N-Channel 60V 1A (Ta) Surface Mount Die, eGaN®	View
TP65H035WS	Transphorm, N-Channel 650V 46.5A (Tc) 156W (Tc) Through Hole TO-247-3,	View
EPC2019	EPC, N-Channel 200V 8.5A (Ta) Surface Mount Die, eGaN®	View
EPC2031	EPC, N-Channel 60V 31A (Ta) Surface Mount Die, eGaN®	View
EPC2020	EPC, N-Channel 60V 90A (Ta) Surface Mount Die, eGaN®	View

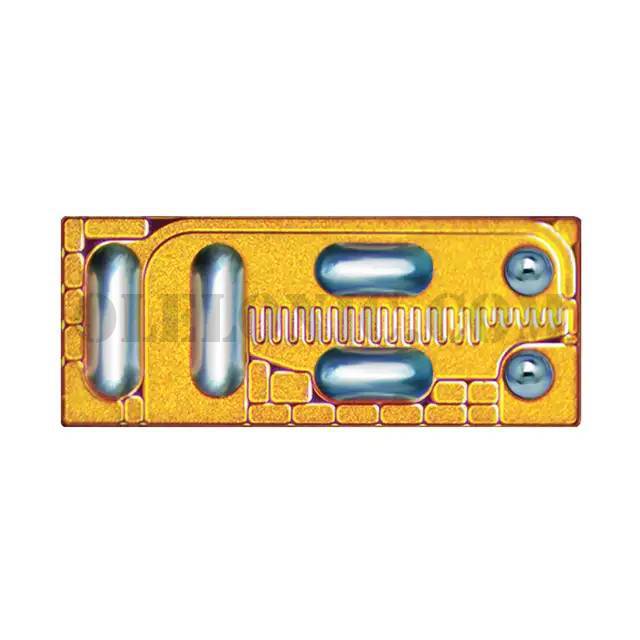

EPC8009
