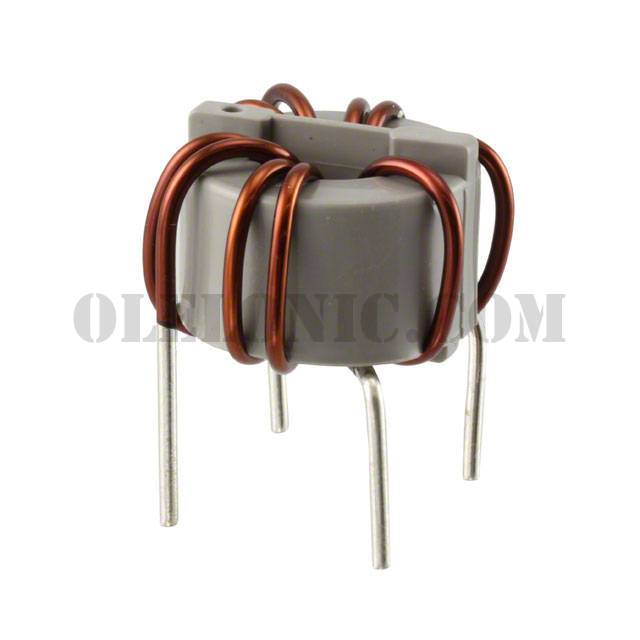

SC-20-D010


SC-20-D010

Part NumberSC-20-D010

Manufacturer

Description

Datasheet

Package / CaseHorizontal, No Base, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SC-20-D010 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package200
ManufacturerKEMET
SeriesSC
PackagingBulk
Part StatusActive
Filter TypePower Line
Number of Lines2
Inductance @ Frequency10µH @ 100kHz
Current Rating (Max)20A
DC Resistance (DCR) (Max)8mOhm
Voltage Rating - DC250V
Voltage Rating - AC250V
Operating Temperature-25°C ~ 105°C
Ratings-
Approvals-
Features-
Mounting TypeThrough Hole
Size / Dimension1.339" Dia (34.00mm)
Height (Max)0.906" (23.00mm)
Package / CaseHorizontal, No Base, 4 PC Pin
