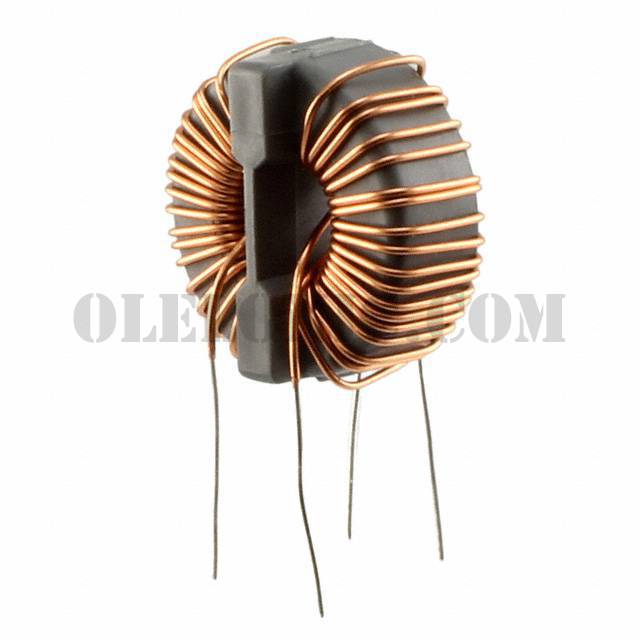

SC-02-D100


SC-02-D100

Part NumberSC-02-D100

Manufacturer

Description

Datasheet

Package / CaseVertical, No Base, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SC-02-D100 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package360
ManufacturerKEMET
SeriesSC
PackagingBulk
Part StatusActive
Filter TypePower Line
Number of Lines2
Inductance @ Frequency100µH @ 100kHz
Current Rating (Max)2A
DC Resistance (DCR) (Max)70mOhm
Voltage Rating - DC250V
Voltage Rating - AC250V
Operating Temperature-25°C ~ 105°C
Ratings-
Approvals-
Features-
Mounting TypeThrough Hole
Size / Dimension0.906" Dia x 0.512" W (23.00mm x 13.00mm)
Height (Max)0.906" (23.00mm)
Package / CaseVertical, No Base, 4 PC Pin
