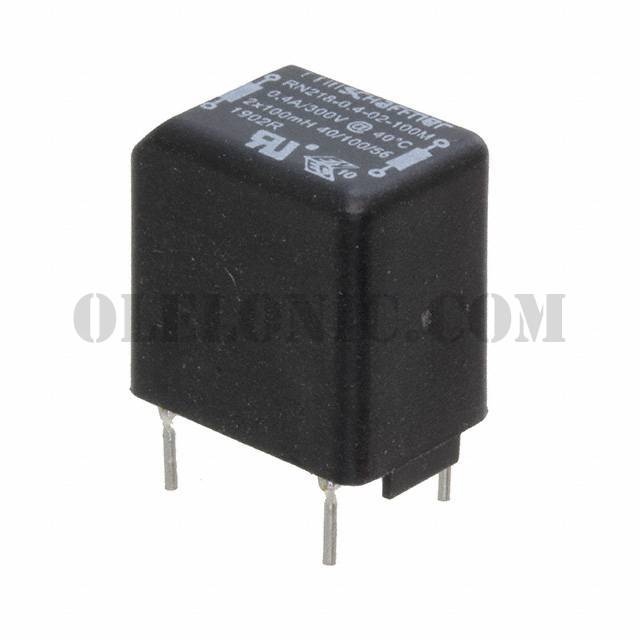

RN218-0.4-02-100M

RN218-0.4-02-100M

Part NumberRN218-0.4-02-100M

ManufacturerSchaffner EMC Inc.

DescriptionCMC 100MH 400MA 2LN TH

DatasheetRN Series Datasheet

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100mH @ 10kHz 2 Line Common Mode Choke Through Hole 400mA DCR 2.8Ohm (Typ)

To learn about the specification of RN218-0.4-02-100M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RN218-0.4-02-100M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RN218-0.4-02-100M.
We are offering RN218-0.4-02-100M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RN218-0.4-02-100M - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	RN Series Datasheet
Standard Package	500
Manufacturer	Schaffner EMC Inc.
Series	RN
Packaging	Tube
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	100mH @ 10kHz
Current Rating (Max)	400mA
DC Resistance (DCR) (Max)	2.8Ohm (Typ)
Voltage Rating - DC	-
Voltage Rating - AC	300V
Operating Temperature	-40°C ~ 100°C
Ratings	-
Approvals	ENEC, UR, VDE
Features	-
Mounting Type	Through Hole
Size / Dimension	0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max)	0.799" (20.30mm)
Package / Case	Vertical, 4 PC Pin
