IKW75N65EL5XKSA1
IKW75N65EL5XKSA1

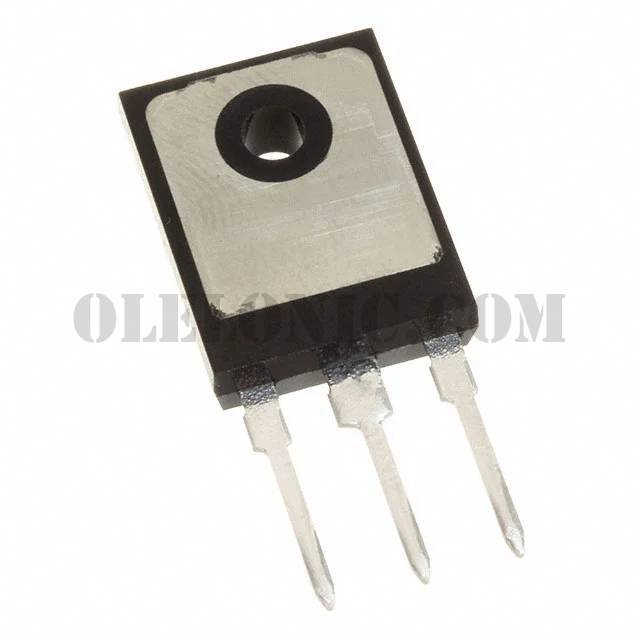

Part Number IKW75N65EL5XKSA1 Description IGBT 650V 75A FAST DIODE TO247-3 Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 650V 80A 536W Through Hole PG-TO247-3
To learn about the specification of IKW75N65EL5XKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IKW75N65EL5XKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IKW75N65EL5XKSA1.
We are offering IKW75N65EL5XKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IKW75N65EL5XKSA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IKW75N65EL5 Standard Package 240 Manufacturer Infineon Technologies Series TrenchStop™ 5 Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 650V Current - Collector (Ic) (Max) 80A Current - Collector Pulsed (Icm) 300A Vce(on) (Max) @ Vge, Ic 1.35V @ 15V, 75A Power - Max 536W Switching Energy 1.61mJ (on), 3.2mJ (off) Input Type Standard Gate Charge 436nC Td (on/off) @ 25°C 40ns/275ns Test Condition 400V, 75A, 4Ohm, 15V Reverse Recovery Time (trr) 114ns Operating Temperature -40°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Supplier Device Package PG-TO247-3
