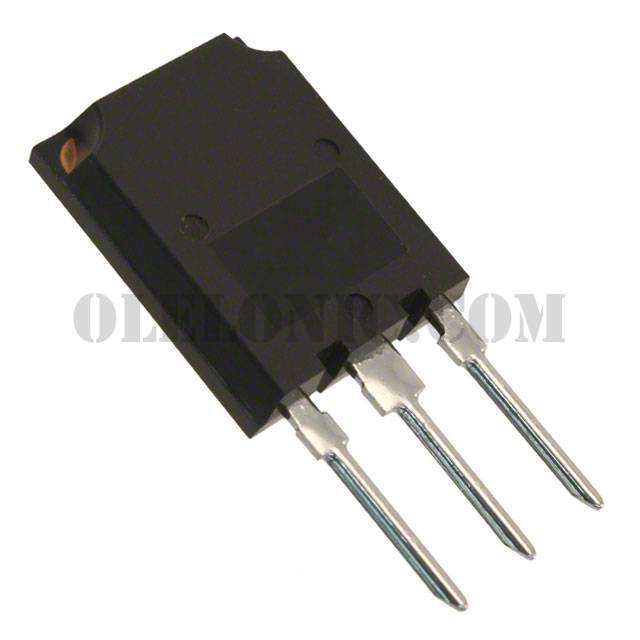

AUIRGPS4070D0

AUIRGPS4070D0

Part NumberAUIRGPS4070D0

ManufacturerInfineon Technologies

DescriptionIGBT 700V SUPER PG-TO274-3-903

DatasheetAUIRGPS4070D0

Package / CaseTO-274AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Trench 600V 240A 750W Through Hole PG-TO274-3-903

To learn about the specification of AUIRGPS4070D0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AUIRGPS4070D0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AUIRGPS4070D0.
We are offering AUIRGPS4070D0 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AUIRGPS4070D0 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	AUIRGPS4070D0
Standard Package	25
Manufacturer	Infineon Technologies
Series	Automotive, AEC-Q101
Packaging	Tube
Part Status	Active
IGBT Type	Trench
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	240A
Current - Collector Pulsed (Icm)	360A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 120A
Power - Max	750W
Switching Energy	5.7mJ (on), 4.2mJ (off)
Input Type	Standard
Gate Charge	250nC
Td (on/off) @ 25°C	40ns/140ns
Test Condition	400V, 120A, 4.7Ohm, 15V
Reverse Recovery Time (trr)	210ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-274AA
Supplier Device Package	PG-TO274-3-903
