B78108E1101M000


B78108E1101M000

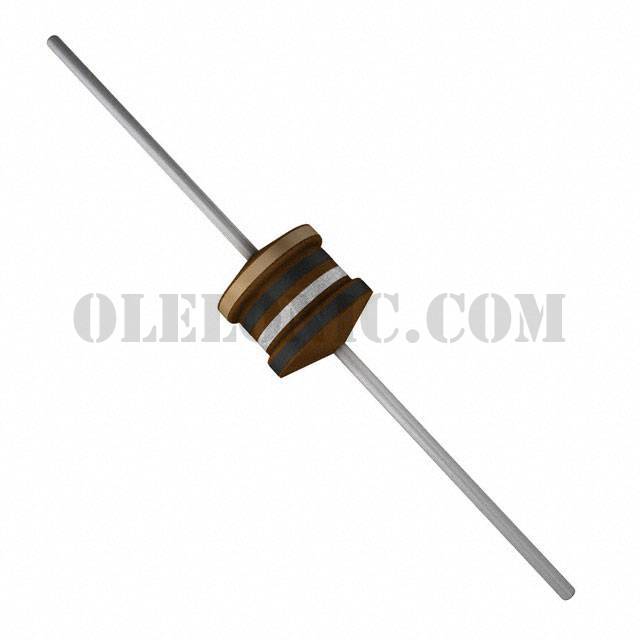

Part NumberB78108E1101M000

Manufacturer

Description

Datasheet

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B78108E1101M000 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package5000
ManufacturerEPCOS (TDK)
SeriesBC+
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance100nH
Tolerance±20%
Current Rating (Amps)7.3A
Current - Saturation17A
ShieldingUnshielded
DC Resistance (DCR)15mOhm Max
Q @ Freq50 @ 7.96MHz
Frequency - Self Resonant700MHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test1MHz
Mounting TypeThrough Hole
Package / CaseAxial
Supplier Device PackageAxial
Size / Dimension0.157" Dia x 0.374" L (4.00mm x 9.50mm)
Height - Seated (Max)-
