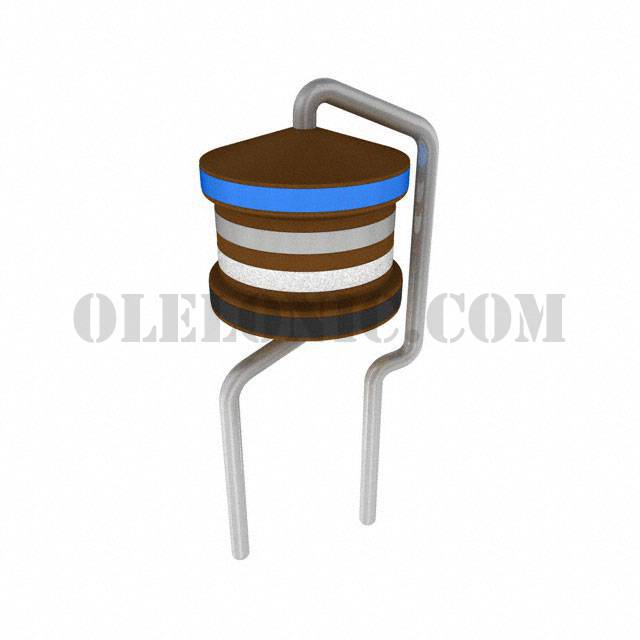

B78148E1681M000


B78148E1681M000

Part NumberB78148E1681M000

Manufacturer

Description

Datasheet

Package / CaseRadial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B78148E1681M000 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerEPCOS (TDK)
SeriesBC+
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance680nH
Tolerance±20%
Current Rating (Amps)4.6A
Current - Saturation7.1A
ShieldingUnshielded
DC Resistance (DCR)31mOhm Max
Q @ Freq60 @ 7.96MHz
Frequency - Self Resonant360MHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test1MHz
Mounting TypeThrough Hole
Package / CaseRadial
Supplier Device Package-
Size / Dimension0.157" Dia (4.00mm)
Height - Seated (Max)0.453" (11.50mm)
