Home/Product Catalog/Inductors, Coils, Chokes / Fixed Inductors/  744772220

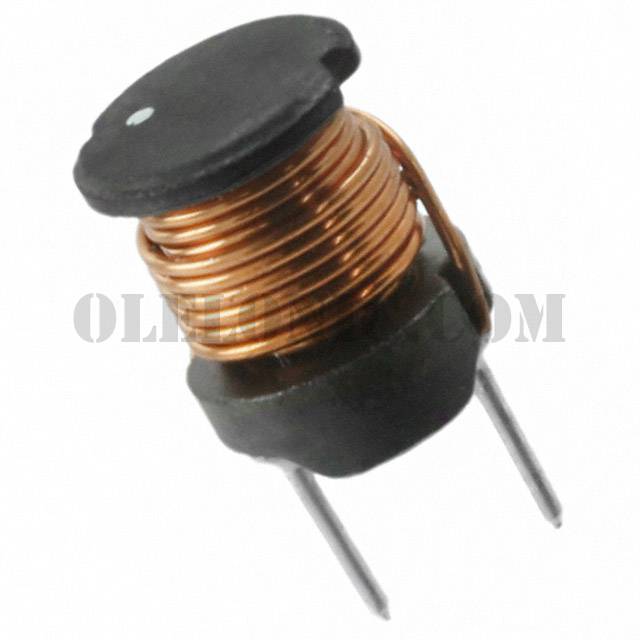

744772220


744772220

Part Number744772220

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744772220 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package140
ManufacturerWurth Electronics Inc.
SeriesWE-TI
PackagingTray
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance22µH
Tolerance±10%
Current Rating (Amps)2.3A
Current - Saturation3.6A
ShieldingUnshielded
DC Resistance (DCR)55mOhm Max
Q @ Freq-
Frequency - Self Resonant12.4MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder (Open)
Supplier Device Package-
Size / Dimension0.307" Dia (7.80mm)
Height - Seated (Max)0.394" (10.00mm)
