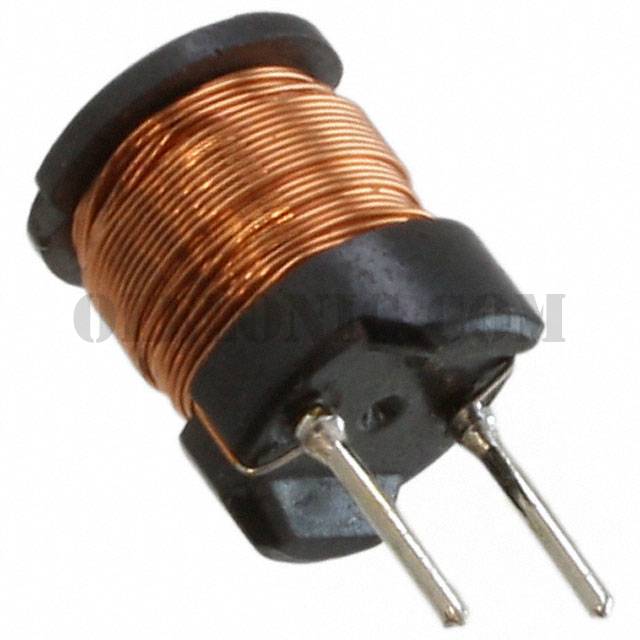

744772152


744772152

Part Number744772152

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744772152 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package140
ManufacturerWurth Electronics Inc.
SeriesWE-TI
PackagingTray
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance1.5mH
Tolerance±5%
Current Rating (Amps)300mA
Current - Saturation400mA
ShieldingUnshielded
DC Resistance (DCR)3Ohm Max
Q @ Freq-
Frequency - Self Resonant1.3MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder (Open)
Supplier Device Package-
Size / Dimension0.307" Dia (7.80mm)
Height - Seated (Max)0.394" (10.00mm)
