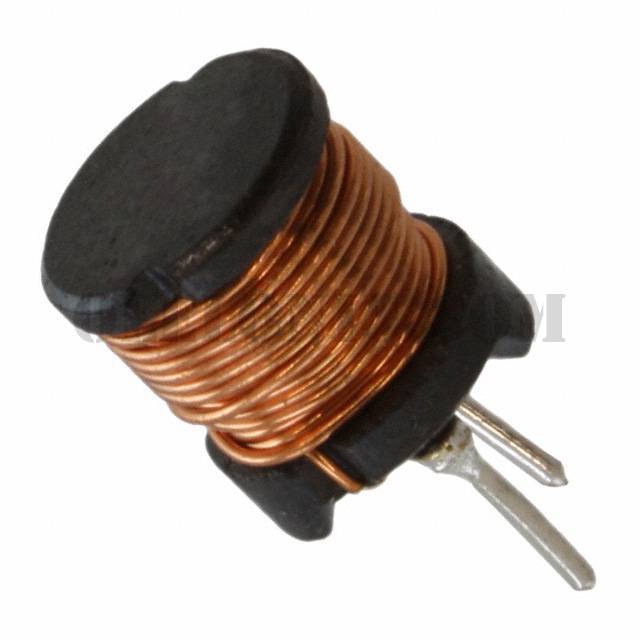

7447720151


7447720151

Part Number7447720151

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

7447720151 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package140
ManufacturerWurth Electronics Inc.
SeriesWE-TI
PackagingTray
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance150µH
Tolerance±10%
Current Rating (Amps)1.1A
Current - Saturation1.2A
ShieldingUnshielded
DC Resistance (DCR)300mOhm Max
Q @ Freq-
Frequency - Self Resonant4.4MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder (Open)
Supplier Device Package-
Size / Dimension0.307" Dia (7.80mm)
Height - Seated (Max)0.394" (10.00mm)
