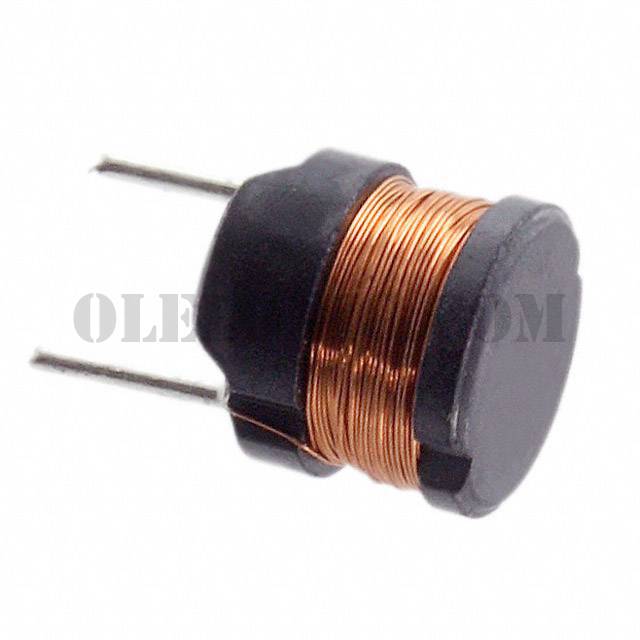

744730392


744730392

Part Number744730392

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744730392 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package140
ManufacturerWurth Electronics Inc.
SeriesWE-TI
PackagingTray
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance3.9mH
Tolerance±5%
Current Rating (Amps)180mA
Current - Saturation200mA
ShieldingUnshielded
DC Resistance (DCR)12Ohm Max
Q @ Freq-
Frequency - Self Resonant1.04MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder (Open)
Supplier Device Package-
Size / Dimension0.307" Dia (7.80mm)
Height - Seated (Max)0.295" (7.50mm)
