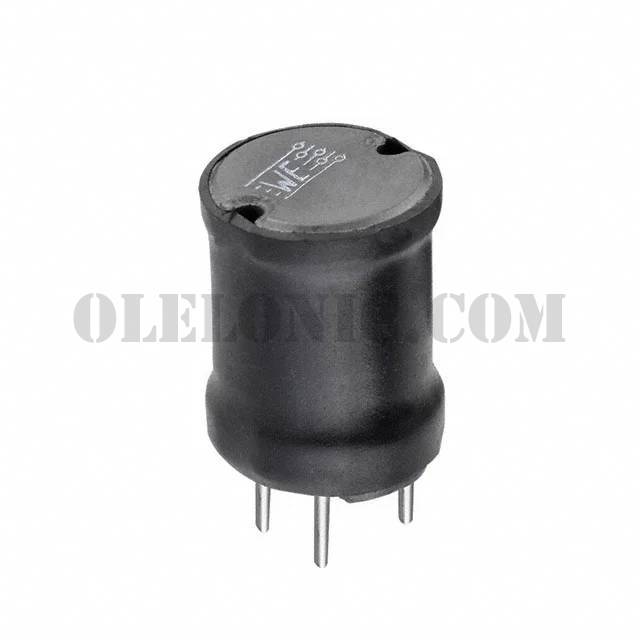

7447231101

Part Number7447231101

ManufacturerWurth Electronics Inc.

DescriptionFIXED IND 100UH 2.6A 90 MOHM TH

Datasheet7447231101 Drawing

Package / CaseRadial, Vertical Cylinder, 4 Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100µH Unshielded Wirewound Inductor 2.6A 90mOhm Max Radial, Vertical Cylinder, 4 Leads

To learn about the specification of 7447231101, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 7447231101 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 7447231101.
We are offering 7447231101 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

7447231101 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	7447231101 Drawing
Standard Package	60
Manufacturer	Wurth Electronics Inc.
Series	WE-TIF
Packaging	Tray
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	100µH
Tolerance	±10%
Current Rating (Amps)	2.6A
Current - Saturation	3.1A
Shielding	Unshielded
DC Resistance (DCR)	90mOhm Max
Q @ Freq	-
Frequency - Self Resonant	3.6MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder, 4 Leads
Supplier Device Package	-
Size / Dimension	0.430" Dia (10.92mm)
Height - Seated (Max)	0.748" (19.00mm)
