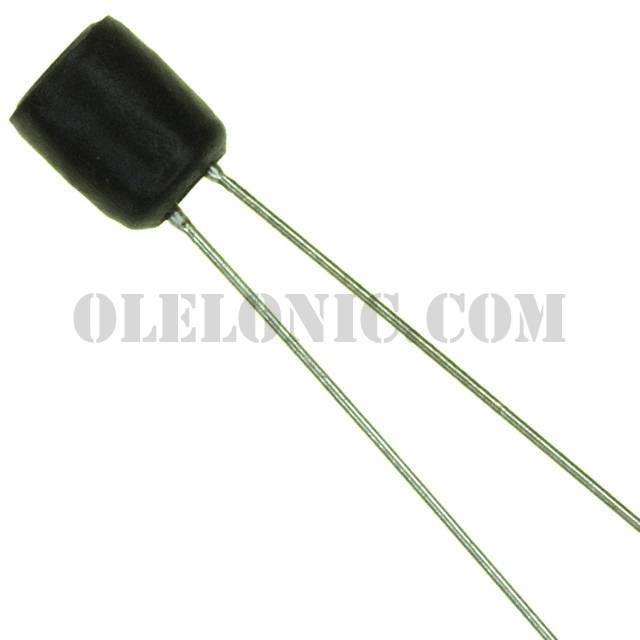

22R156C

22R156C

Part Number22R156C

ManufacturerMurata Power Solutions Inc.

DescriptionFIXED IND 15MH 54MA 51.7 OHM TH

Datasheet2200R Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description15mH Unshielded Wirewound Inductor 54mA 51.7Ohm Max Radial, Vertical Cylinder

To learn about the specification of 22R156C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 22R156C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 22R156C.
We are offering 22R156C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

22R156C - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	2200R Series
Standard Package	100
Manufacturer	Murata Power Solutions Inc.
Series	2200R
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	15mH
Tolerance	±10%
Current Rating (Amps)	54mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	51.7Ohm Max
Q @ Freq	140 @ 150kHz
Frequency - Self Resonant	510kHz
Ratings	-
Operating Temperature	-25°C ~ 70°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.413" (10.50mm)
