Home/Product Catalog/Inductors, Coils, Chokes / Fixed Inductors/ 22R476C

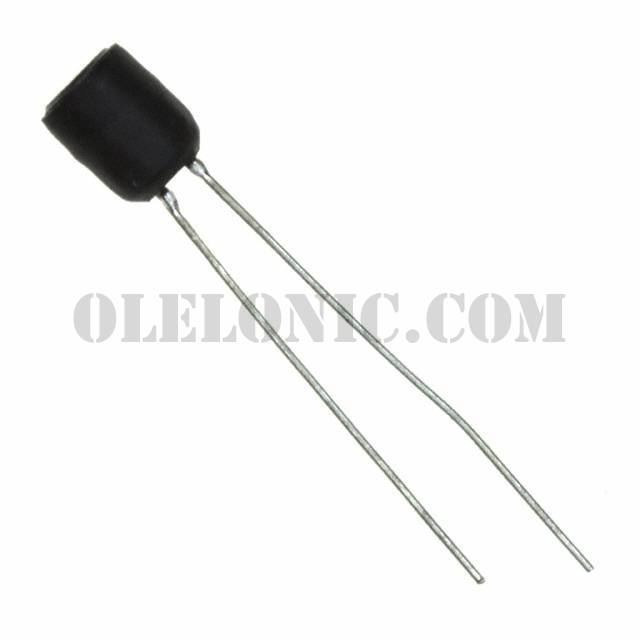

22R476C

22R476C

Part Number22R476C

ManufacturerMurata Power Solutions Inc.

DescriptionFIXED IND 47MH 27MA 169.4 OHM TH

Datasheet2200R Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description47mH Unshielded Wirewound Inductor 27mA 169.4Ohm Max Radial, Vertical Cylinder

To learn about the specification of 22R476C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 22R476C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 22R476C.
We are offering 22R476C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

22R476C - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	2200R Series
Standard Package	100
Manufacturer	Murata Power Solutions Inc.
Series	2200R
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	47mH
Tolerance	±10%
Current Rating (Amps)	27mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	169.4Ohm Max
Q @ Freq	90 @ 50kHz
Frequency - Self Resonant	250kHz
Ratings	-
Operating Temperature	-25°C ~ 70°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.413" (10.50mm)
