22R223C

22R223C

Part Number22R223C

ManufacturerMurata Power Solutions Inc.

DescriptionFIXED IND 22UH 1.08A 90 MOHM TH

Datasheet2200R Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

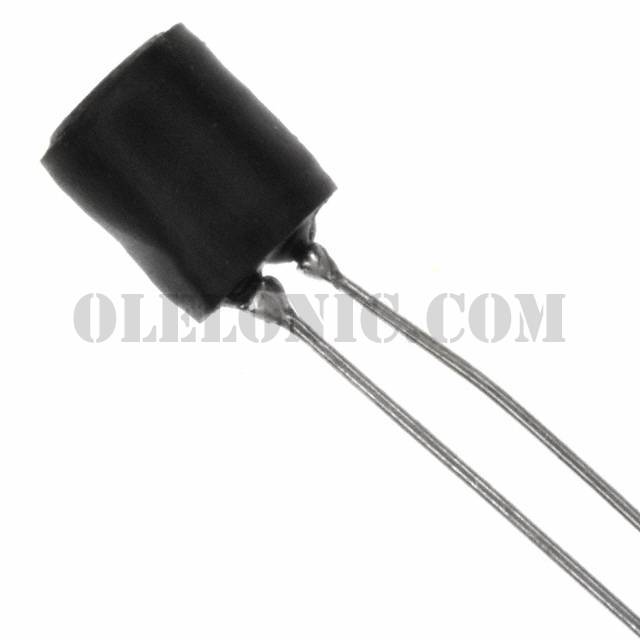

Detailed Description22µH Unshielded Wirewound Inductor 1.08A 90mOhm Max Radial, Vertical Cylinder

To learn about the specification of 22R223C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 22R223C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 22R223C.
We are offering 22R223C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

22R223C - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	2200R Series
Standard Package	100
Manufacturer	Murata Power Solutions Inc.
Series	2200R
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	22µH
Tolerance	±10%
Current Rating (Amps)	1.08A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	90mOhm Max
Q @ Freq	50 @ 500kHz
Frequency - Self Resonant	17MHz
Ratings	-
Operating Temperature	-25°C ~ 70°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.413" (10.50mm)
