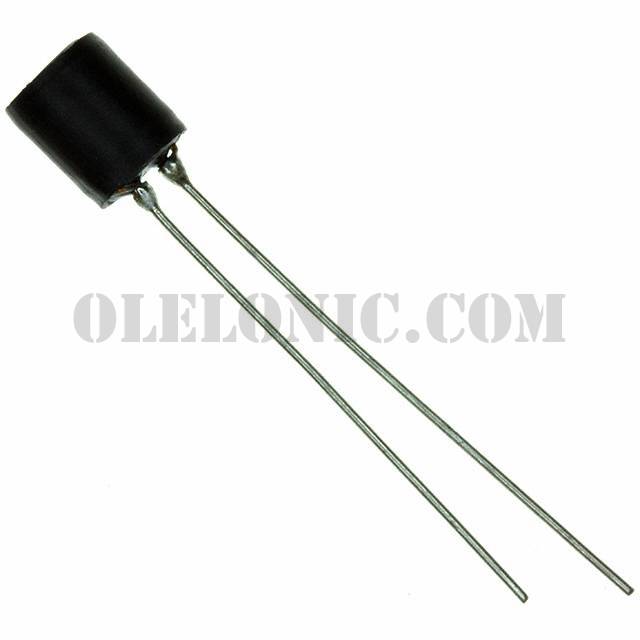

22R473C

22R473C

Part Number22R473C

ManufacturerMurata Power Solutions Inc.

DescriptionFIXED IND 47UH 770MA 220 MOHM TH

Datasheet2200R Series

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description47µH Unshielded Wirewound Inductor 770mA 220mOhm Max Radial, Vertical Cylinder

To learn about the specification of 22R473C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 22R473C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 22R473C.
We are offering 22R473C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

22R473C - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	2200R Series
Standard Package	100
Manufacturer	Murata Power Solutions Inc.
Series	2200R
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	47µH
Tolerance	±10%
Current Rating (Amps)	770mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	220mOhm Max
Q @ Freq	50 @ 500kHz
Frequency - Self Resonant	10.9MHz
Ratings	-
Operating Temperature	-25°C ~ 70°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.413" (10.50mm)
