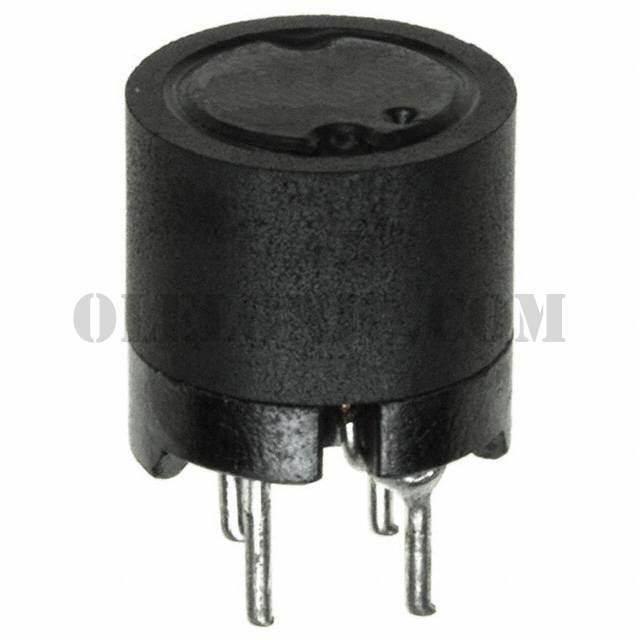

12RS223C

12RS223C

Part Number12RS223C

ManufacturerMurata Power Solutions Inc.

DescriptionFIXED IND 22UH 3.3A 42 MOHM TH

Datasheet1200RS Series

Package / CaseRadial, Vertical Cylinder, 4 Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µH Shielded Wirewound Inductor 3.3A 42mOhm Max Radial, Vertical Cylinder, 4 Leads

To learn about the specification of 12RS223C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 12RS223C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 12RS223C.
We are offering 12RS223C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

12RS223C - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	1200RS Series
Standard Package	250
Manufacturer	Murata Power Solutions Inc.
Series	1200RS
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	22µH
Tolerance	±20%
Current Rating (Amps)	3.3A
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	42mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	10kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder, 4 Leads
Supplier Device Package	-
Size / Dimension	0.413" Dia (10.50mm)
Height - Seated (Max)	0.335" (8.50mm)
