Categories	Capacitors / Aluminum Electrolytic Capacitors

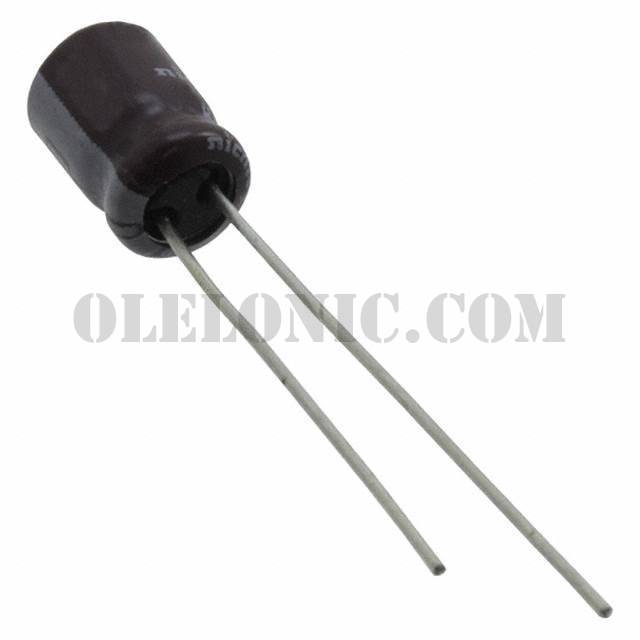

Datasheet	USF Series
Standard Package	200
Manufacturer	Nichicon
Series	USF
Packaging	Bulk
Part Status	Active
Capacitance	15µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	55mA @ 120Hz
Ripple Current @ High Frequency	110mA @ 100kHz
Impedance	1.7 Ohms
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
