TPS1101PWR

TPS1101PWR

Part NumberTPS1101PWR

ManufacturerTexas Instruments

DescriptionMOSFET P-CH 15V 2.18A 16-TSSOP

DatasheetTPS1101, TPS1101Y

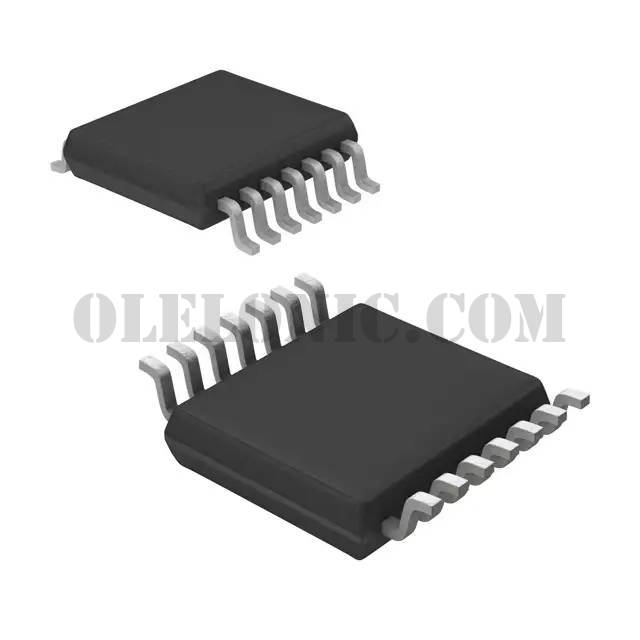

Package / Case16-TSSOP (0.173", 4.40mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 15V 2.18A (Ta) 710mW (Ta) Surface Mount 16-TSSOP

To learn about the specification of TPS1101PWR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPS1101PWR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPS1101PWR.
We are offering TPS1101PWR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TPS1101PWR - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TPS1101, TPS1101Y
Standard Package	1
Manufacturer	Texas Instruments
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	15V
Current - Continuous Drain (Id) @ 25°C	2.18A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.7V, 10V
Rds On (Max) @ Id, Vgs	90mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	11.25nC @ 10V
Vgs (Max)	+2V, -15V
FET Feature	-
Power Dissipation (Max)	710mW (Ta)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	16-TSSOP
Package / Case	16-TSSOP (0.173", 4.40mm Width)
