STL42P4LLF6

STL42P4LLF6

Part NumberSTL42P4LLF6

ManufacturerSTMicroelectronics

DescriptionMOSFET P-CH 40V 42A 8POWERFLAT

DatasheetSTL42P4LLF6

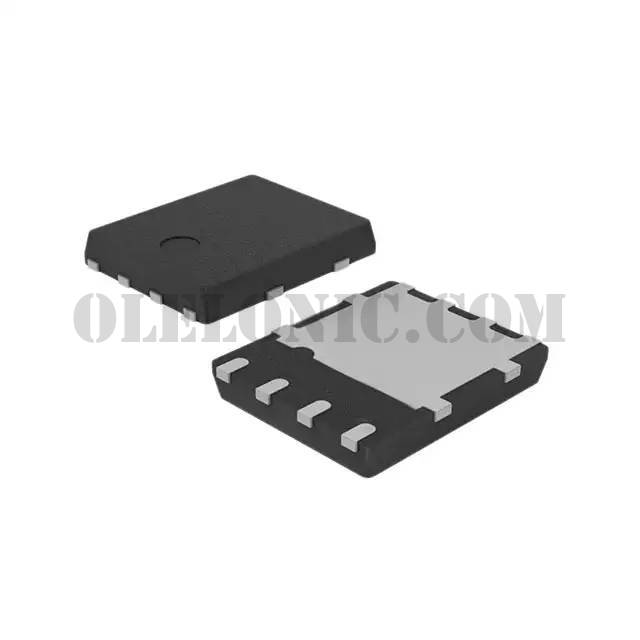

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 40V 42A (Tc) 75W (Tc) Surface Mount PowerFlat™ (5x6)

To learn about the specification of STL42P4LLF6, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL42P4LLF6 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL42P4LLF6.
We are offering STL42P4LLF6 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL42P4LLF6 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STL42P4LLF6
Standard Package	1
Manufacturer	STMicroelectronics
Series	STripFET™ F6
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	42A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	18mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	22nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2850pF @ 25V
FET Feature	-
Power Dissipation (Max)	75W (Tc)
Operating Temperature	175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (5x6)
Package / Case	8-PowerVDFN
