FDZ375P

FDZ375P

Part NumberFDZ375P

ManufacturerON Semiconductor

DescriptionMOSFET P-CH 20V WLCSP 1X1

DatasheetFDZ375P

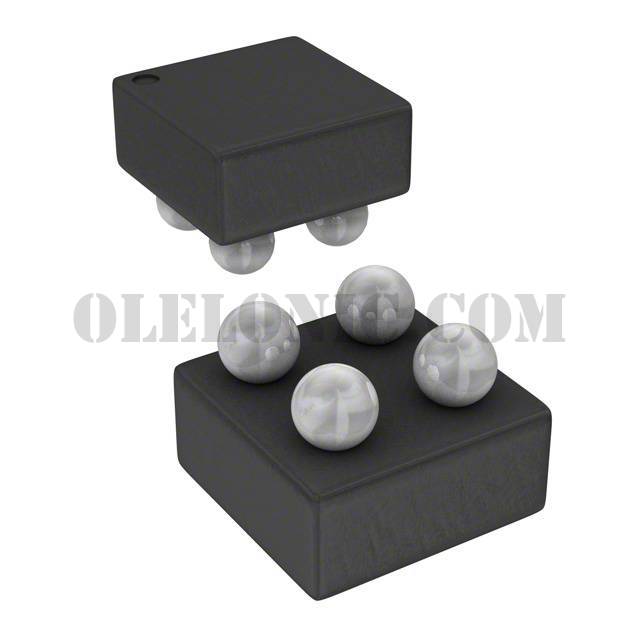

Package / Case4-XFBGA, WLCSP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 3.7A (Ta) 1.7W (Ta) Surface Mount 4-WLCSP (1x1)

To learn about the specification of FDZ375P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDZ375P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDZ375P.
We are offering FDZ375P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDZ375P - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDZ375P
Standard Package	5000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	78mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	865pF @ 10V
FET Feature	-
Power Dissipation (Max)	1.7W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-WLCSP (1x1)
Package / Case	4-XFBGA, WLCSP
