STL7N60M2

STL7N60M2

Part NumberSTL7N60M2

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 600V 5A POWERFLAT

DatasheetSTL7N60M2 Datasheet

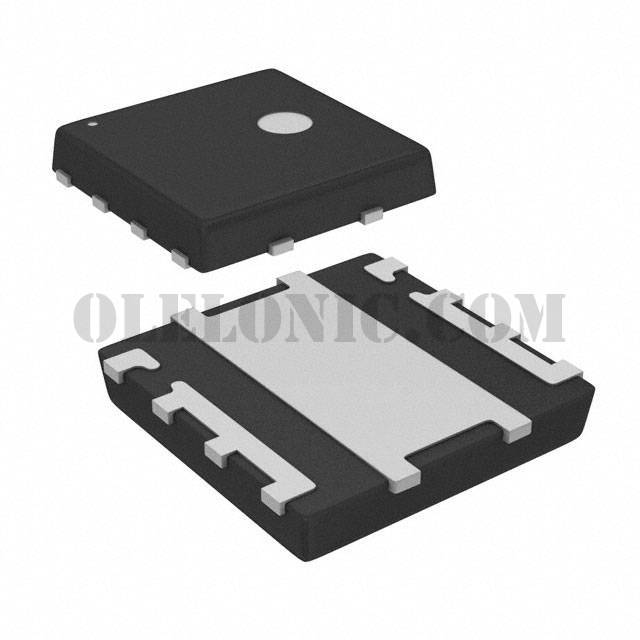

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 5A (Tc) 4W (Ta), 67W (Tc) Surface Mount PowerFLAT™ (5x5)

To learn about the specification of STL7N60M2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL7N60M2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL7N60M2.
We are offering STL7N60M2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL7N60M2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STL7N60M2 Datasheet
Standard Package	1
Manufacturer	STMicroelectronics
Series	MDmesh™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.05Ohm @ 2A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8.8nC @ 10V
Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	271pF @ 100V
FET Feature	-
Power Dissipation (Max)	4W (Ta), 67W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFLAT™ (5x5)
Package / Case	8-PowerVDFN
