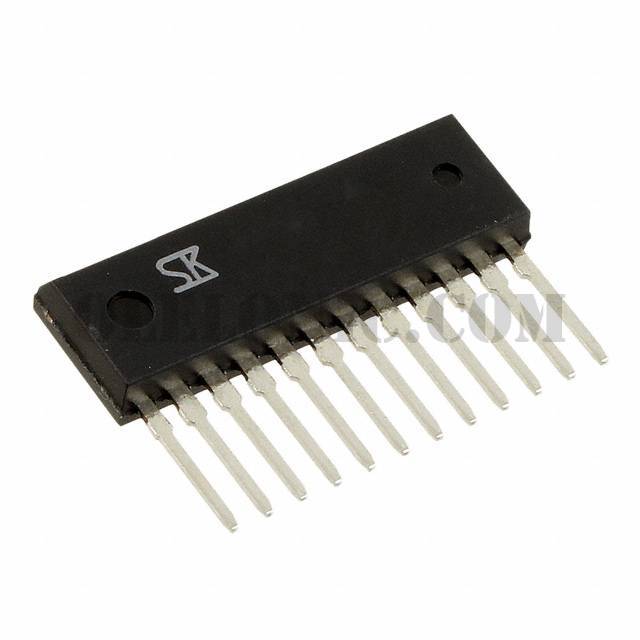

SMA6010

Part NumberSMA6010

ManufacturerSanken

DescriptionTRANS 3NPN/3PNP DARL 60V 12SIP

DatasheetSMA6010

Package / Case12-SIP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 3 NPN, 3 PNP Darlington (3-Phase Bridge) 60V 4A 75MHz 4W Through Hole 12-SIP

To learn about the specification of SMA6010, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SMA6010 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SMA6010.
We are offering SMA6010 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SMA6010 - Product Attributes

SMA6010 - Related Products

More >>

ZXTC6718MCTA

Diodes Incorporated, Bipolar (BJT) Transistor Array NPN, PNP 20V 4.5A, 3.5A 140MHz, 180MHz 1.7W Surface Mount 8-DFN (3x2),

View

PUMZ1,115

Nexperia USA Inc., Bipolar (BJT) Transistor Array NPN, PNP 40V 100mA 100MHz 300mW Surface Mount 6-TSSOP,

View

DME20B010R

Panasonic Electronic Components, Bipolar (BJT) Transistor Array NPN, PNP Complementary Darlington 50V 100mA 150MHz 300mW Surface Mount Mini5-G3-B,

View

BC847BPDW1T3G

ON Semiconductor, Bipolar (BJT) Transistor Array NPN, PNP 45V 100mA 100MHz 380mW Surface Mount SC-88/SC70-6/SOT-363,

View

PMBT3946YPN,125

Nexperia USA Inc., Bipolar (BJT) Transistor Array NPN, PNP 40V 200mA 300MHz, 250MHz 350mW Surface Mount 6-TSSOP,

View

SBC846BPDW1T1G

ON Semiconductor, Bipolar (BJT) Transistor Array NPN, PNP 65V 100mA 100MHz 380mW Surface Mount SC-88/SC70-6/SOT-363, Automotive, AEC-Q101

View

SMBT3946DW1T1G

ON Semiconductor, Bipolar (BJT) Transistor Array NPN, PNP 40V 200mA 300MHz, 250MHz 150mW Surface Mount SC-88/SC70-6/SOT-363,

View

QSZ4TR

Rohm Semiconductor, Bipolar (BJT) Transistor Array NPN, PNP (Emitter Coupled) 30V 2A 280MHz 1.25W Surface Mount TSMT5,

View

CPH5506-TL-E

ON Semiconductor, Bipolar (BJT) Transistor Array NPN, PNP (Emitter Coupled) 30V 1.5A 500MHz, 450MHz 1.2W Surface Mount 5-CPH,

View

FFB2227A

ON Semiconductor, Bipolar (BJT) Transistor Array NPN, PNP 30V 500mA 250MHz 300mW Surface Mount SC-88 (SC-70-6),

View

DME501010R

Panasonic Electronic Components, Bipolar (BJT) Transistor Array NPN, PNP (Emitter Coupled) 50V 100mA 150MHz 150mW Surface Mount SMini5-F3-B,

View

SMA6511

Sanken, Bipolar (BJT) Transistor Array 4 NPN, 1 PNP Darlington 60V 1.5A, 3A 4W Through Hole 12-SIP,

View

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	SMA6010
Standard Package	18
Manufacturer	Sanken
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	3 NPN, 3 PNP Darlington (3-Phase Bridge)
Current - Collector (Ic) (Max)	4A
Voltage - Collector Emitter Breakdown (Max)	60V
Vce Saturation (Max) @ Ib, Ic	1.5V @ 6mA, 3A
Current - Collector Cutoff (Max)	100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	2000 @ 3A, 4V
Power - Max	4W
Frequency - Transition	75MHz
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	12-SIP
Supplier Device Package	12-SIP
