ZXTC6718MCTA

Part NumberZXTC6718MCTA

ManufacturerDiodes Incorporated

DescriptionTRANS NPN/PNP 20V 4.5A/3.5A 8DFN

DatasheetZXTC6718MC

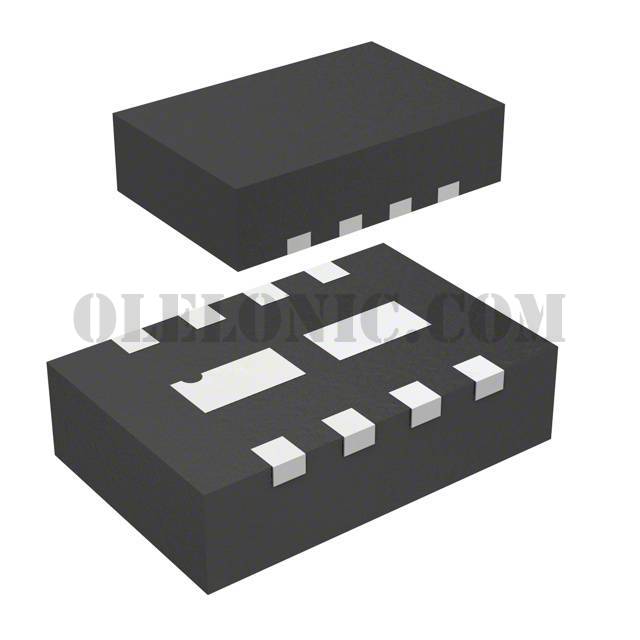

Package / Case8-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array NPN, PNP 20V 4.5A, 3.5A 140MHz, 180MHz 1.7W Surface Mount 8-DFN (3x2)

To learn about the specification of ZXTC6718MCTA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ZXTC6718MCTA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ZXTC6718MCTA.
We are offering ZXTC6718MCTA for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ZXTC6718MCTA - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	ZXTC6718MC
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN, PNP
Current - Collector (Ic) (Max)	4.5A, 3.5A
Voltage - Collector Emitter Breakdown (Max)	20V
Vce Saturation (Max) @ Ib, Ic	300mV @ 125mA, 4.5A / 300mV @ 350mA, 3.5A
Current - Collector Cutoff (Max)	100nA
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 2A, 2V / 150 @ 2A, 2V
Power - Max	1.7W
Frequency - Transition	140MHz, 180MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-DFN (3x2)
Base Part Number	ZXTC6718MC
